LILYGO T-Node is a product designed with a waterproof shell, divided into two application example scenarios 1.Suspended external high-gain glue stick antenna version (default without vibration motor),

(reference application is ESP32 WIFI Mesh Root node) internally based on ESP32-WROVER-IE module,

external antenna supporting 6DB gain. It can be fixed to the wall through the screw holes reserved on the back 2. The wearable version can be made into a watch wearing way or as a pendant through the reserved side holes of the strap and pendant.

(The reference application is ESP32 Mesh None). The internal is based on the ESP32-WROVER-E module, the on-board PCB antenna is used,

with a vibration motor sensor, which is used to remind the state of the application when wearing the application,

touch buttons, 5050RGBLED, RTC, GPIO reserved for expandable functions on both sides of the motherboard, Waterproof toggle switch, waterproof USB.

（Note that the main unit is designed for waterproofing, so it is not recommended to be immersed in water for a long time, and the waterproof function is not guaranteed. ) T-Node Root NODE parameters;

• ESP32-WAROVER-IE
• 6DB high gain external glue stick antenna
• 3535 RGB LED x4
• BM8563 RTC clock
• TTP223 touch button X2
• Waterproof toggle switch
• Waterproof USB
• 850ma battery

T-Node host parameters:

• ESP32-WAROVER-I
• Vibration motor
• 3535 RGB LED x4
• BM8563 RTC clock
• TTP223 touch button X2
• Waterproof toggle switch
• Waterproof USB
• 850ma battery

Application scenarios

• Industrial scene WIFI Mesh equipment
• Programmable IOT terminal equipment
• STEM

Github link:https://github.com/Xinyuan-LilyGO/LilyGo-T-Node

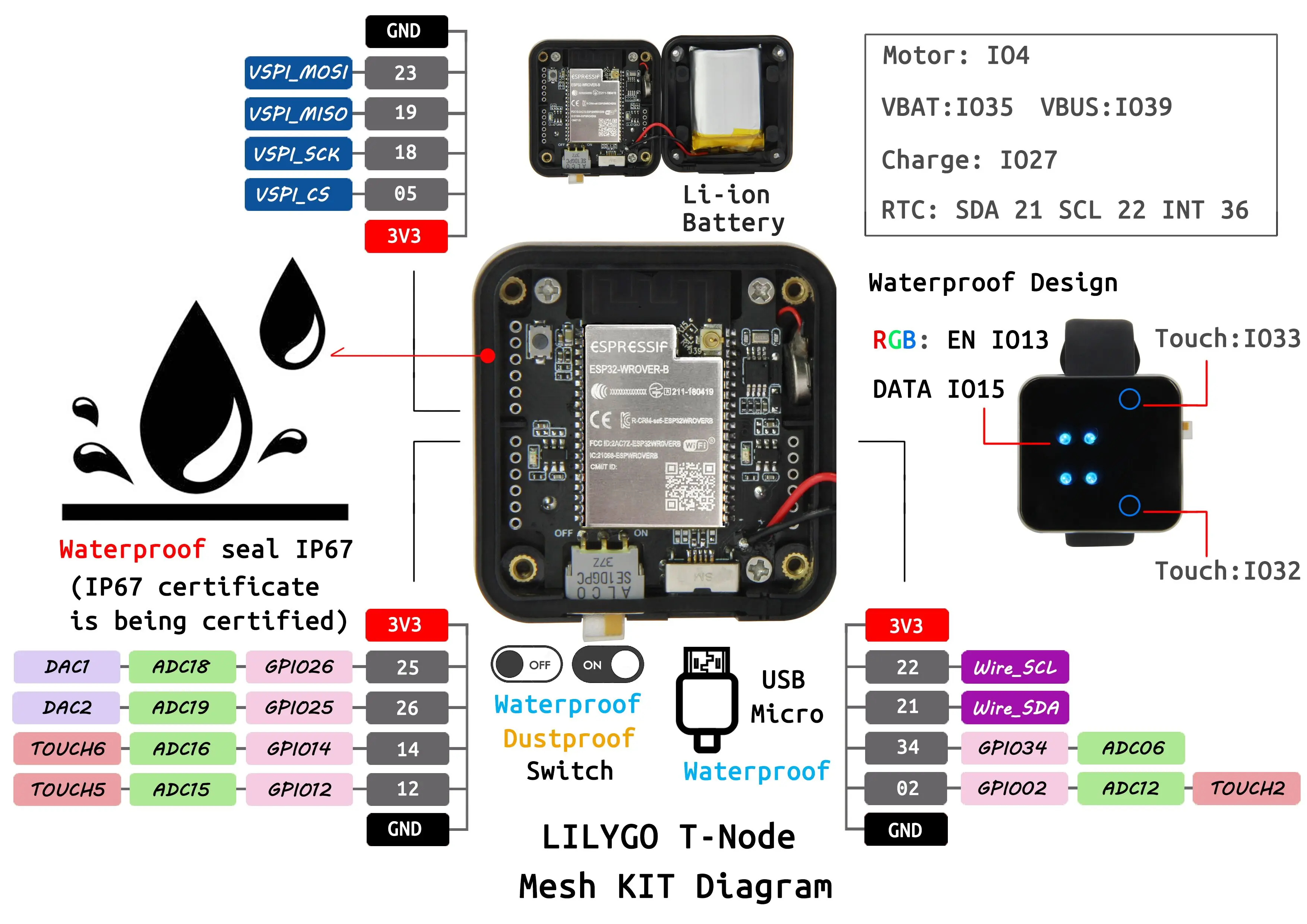

Product pin diagram： Product size chart Shipping list

T-Node Mesh KIT wearable option - 1 XT-Node Mesh KIT - 1 X micro USB - 1 X Strap T-T-Node Mesh KIT suspension option

• 1 XT-Node Mesh KIT
• 1 X micro USB
• 1 X antenna
