CAN USB converter (UCCB)

Name: CAN USB converter (UCCB)
SKU: 7931
Price: 23.00 USD
Availability: InStock
Rating: 4.57 (7 reviews)

(7 Reviews)

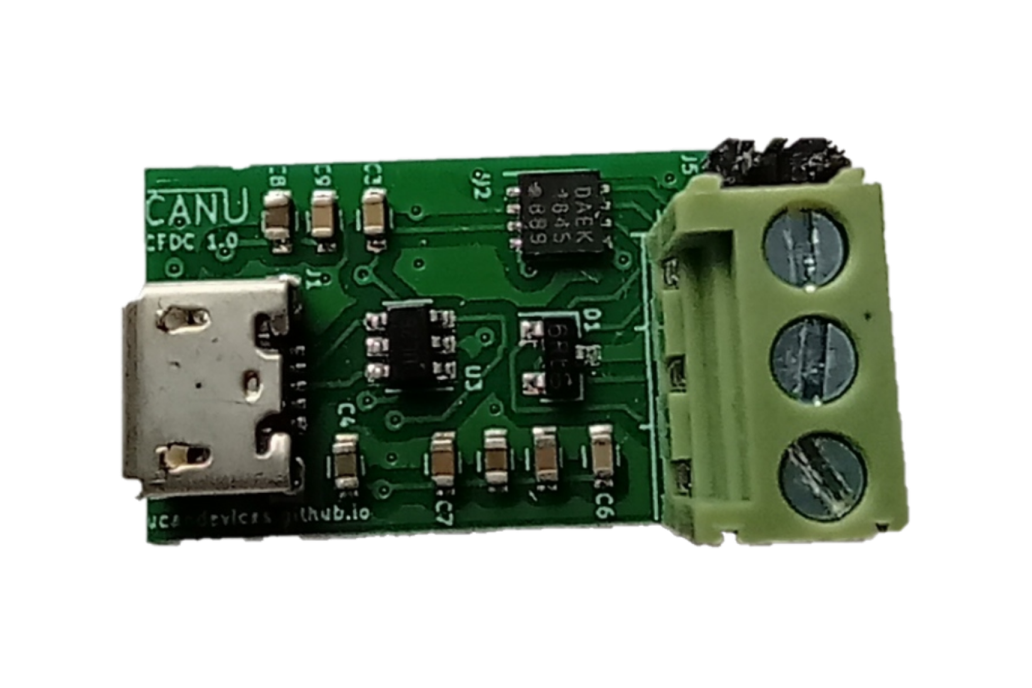

UCCB is open-source USB to CAN adapter that works as virtual COM port with Linux, Mac, RPi and Windows

Designed by ucandevices in Poland



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

UCCB is open-source USB to CAN adapter that works as virtual COM port with Linux, Mac, RPi and Windows

Usb CAN Converter Basic(UCCB) works as CAN to UART converter. Two communications port exist, USB(virtual COM port) . Multiple features are supported like: CAN version 2.0 support, hardware for CANFD…

Tools

UCCB have Java GUI support and libraries in JAVA, Python and C#. Device also supports DFU bootloader for new firmware upload via USB. Support SLCAN linux driver

To find out more about UCCB visit https://ucandevices.github.io/

See this tutorial on how to use python tools with this device.

No country selected, please select your country to see shipping options.

Change Destination Country:

Quantity	Price
1-4	$23.00
5+	$22.00

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (4.00)

Shipping: (4.57)

Communication: (4.71)

Tyqvmumb Adrian Nicolae | Sept. 19, 2024

very good product

Just wanted to say that i tested myself and is a good product, well documented, so i recomend this seller !!!

John | Nov. 28, 2019

Glad I investigated this prototype.

This is a pretty stripped down USB to CAN interface. The FW as shipped supports only a serial emulator interface to the CAN bus. At 115200(?) kbaud, this can lead to message loss on a 250KB bus.

The vendor was super helpful and was willing to discuss modification for a larger order. Although our target application will likely use a completely different approach, the vendor very much opened the door for an alternative.

Response from ucandevices | Nov. 28, 2019

Hi, thanks for review.

As for serial emulator interface baudrate only limit is form usb high speed that is about 480Mbit, value that You set in serial terminal (for example 115200) has no effect on device. Device if tested with fully loaded 1Mbit CAN bus at has reception rate nearly 100%.

If You had some issues with high receiving hight speed CAN data please contact me.

Also if You are not satisfied with SLCAN software for UCCB (that one with VirtualCOM port, You can always try second software with driver based on GS_USB (works on linux only) but it has better support for SocketCAN and CAN-utils.

Carl | Sept. 2, 2019

Great simple to use device for developing and debugging CAN

It's hard to find simple USB to CAN converters. A lengthy search for such a device led me to this one. It took about 10 days to arrive via postal service (Maryland U.S.) and it arrived solo in an envelope - no documentation, just the dongle in some antistatic wrap (a simple card showing where software can be found would have been a nice touch). Going back to the manufacturer's web site, then to a Git address I found some Java software and a user manual for it that just suits my purpose for purchasing this device - test and debug a CAN interface. The software is intuitive and is easy to use - put in an address, put in some data and click. The device itself is equally so. I just plugged it into a USB extension, connected to my CAN network through a couple of wires from screw terminals to a bus transceiver chip and got to work debugging.

Sabatini | Aug. 12, 2018

Very satisfied with the purchase.

Very good product, well documented. I am very satisfied with the purchase.
I am developing a CAN-BUS application on a STM32F104 platform. The uCCB will be very useful for me to test my application.

Rb-Informatique | July 9, 2018

Very good product

Very good solution.
Shipping enough fast.
Work well on Ubuntu 14.04 and 16.04
Thanks a lot !!

Thomas | March 16, 2018

Does what it says on the tin

Perfect. Couldn't recommend more. Arrived quickly and well packaged. The software does most things you'll need and the source is available to download and compile if you want to add functionality (perhaps consider having a prebuilt version?).

Michael | Feb. 28, 2018

Wonderful

This is a great product. My use of this device required that the CAN 2.0B data stream originate from a BASH shell, so the ucanviewer Java application was not an option for me. For me this device had issues operating under Ubuntu 16.04, however it ran very well under Raspbian executing on a Raspbery Pi. I believe that this device will operate very well under other Linux OS's. I used can-utils/SocketCAN/candump. Try using ucanviewer, directly from the shell, or can-utils/SocketCAN... I am sure that you will enjoy using this product. The construction is excellent, the support is excellent and the price is great! The architect/designer of this product is extremely knowledgeable and very friendly.

+ Show 2 more
