E3013 Serial Byte Monitor

Name: E3013 Serial Byte Monitor
SKU: 26392
Price: 14.99 USD
Availability: InStock

This module displays serial data as two hex digits with 16 common baud rates supported..

Designed by Locus Engineering Inc. in Canada

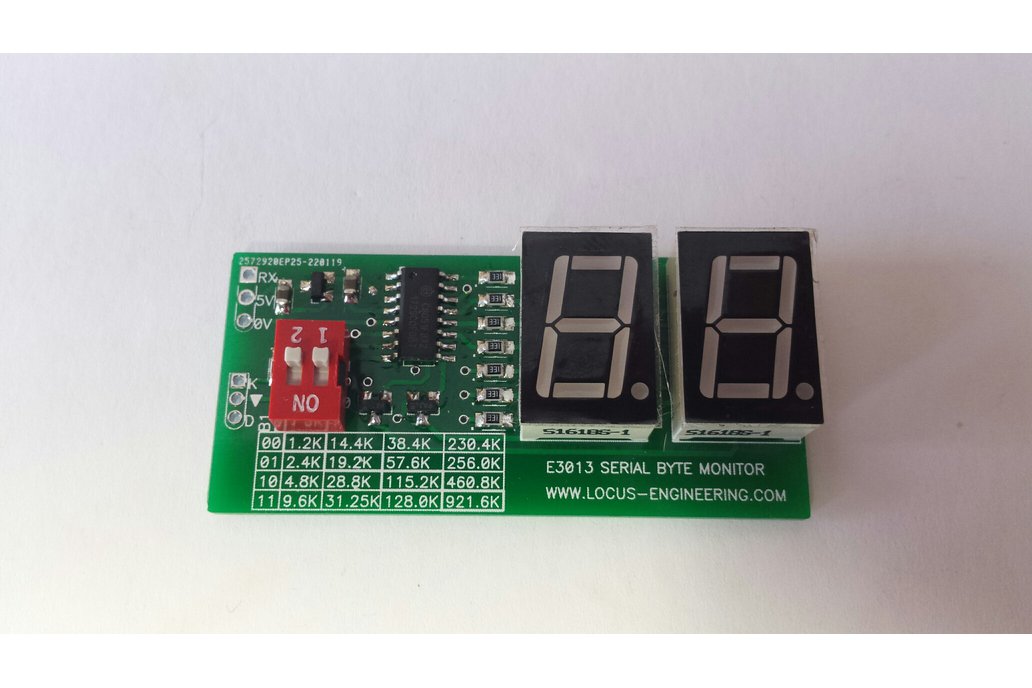

2022-03-31T16:49:53.272Z-E3013 Serial Byte Monitor.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This module displays serial data as two hex digits with 16 common baud rates supported..

The E3013 Serial Byte Monitor is a standalone module ideal for verifying serial data at common baud rates. Data is displayed as two large 0.56" high hexadecimal numbers. This display is useful for single stepping serial data without a PC. There are 16 baud rates between 1.2K to 921.6K organized into four baud groups of four specific baud rates. On power up the baud group is set, and following this the specific baud rate can set using the switch settings. Power input is +3.3V to +5.5V and the outputs are TTL or 3.3V logic compatible.
