REVISION 2.2.0 IS HERE WITH DUAL USB POWER AND BUTTON CONNECTORS!

What's new in revision 2.2.0?

• Dual USB Power Lines: Now, you can power two devices connected to your Atari ST computer, such as the SatanDisk or ACSI2STM devices.
• JST SH 2x1mm Male Connectors: These connectors are for external buttons in custom cases.

100% backwards compatible with previous revisions.

SidecarTridge is a state-of-the-art multi-device emulator crafted for the Atari ST, STE, and Mega series. This particular edition is ideal for those with access to a Raspberry Pi Pico W or WH and does not require purchasing one with the SidecarTridge multi-device.

It leverages the robust capabilities of the RP2040 microcontroller found in the Raspberry Pi Pico, enabling it to:

• Emulate both 64Kbyte and 128Kbyte ROMs by simply loading the binary files from a microSD card or via a Wi-Fi connection.
• Interact with the cartridge bus in real-time for data reading and writing, which allows for seamless emulation of different devices, like for example:
• • Hard disk drive
• • Floppy disk
• • Real-time clock

Dive into a realm of possibilities limited only by your creativity. Thanks to its open architecture and the open-source code available here, SidecarTridge can evolve to meet any challenge you envision.

Learn more about the device on the website, and if you are interested in programming it, start on the documentation site.

This SidecarTridge Multi-device includes:

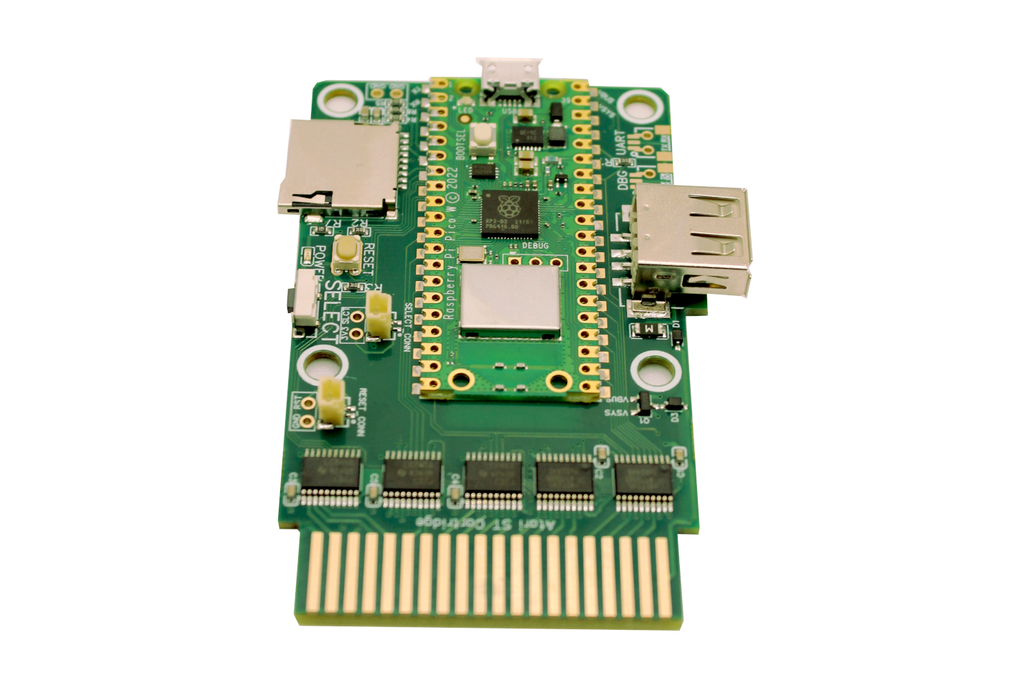

• SidecarTridge PCB board with manually soldered female headers for the Raspberry Pi Pico W or WH and USB 2.0 2 Right-Angle 4P+4P Female.
• 4xM4 6mm Phillips Nylon Screws
• 4xM4 8mm Nylon Spacers

There are three different options:

• No Raspberry Pi Pico W/WH: You will need to buy a Raspberry Pi Pico W or WH. You will also need to solder the header pins to the Pi Pico W.
• Raspberry Pi Pico W (with soldered headers): The board has a pre-configured Pi Pico W board with the latest firmware version. The headers come pre-soldered.
• Raspberry Pi Pico WH: The board comes with a pre-configured Pi Pico WH with the latest firmware. The Pico WH already has headers.

The main difference between the W and the WH is the JST SH 3x1mm connector on top of the Pico WH, which connects it to the Raspberry Pi Debug Probe. You need a cable with two JST SH 3x1mm female connectors to connect the UART to the Raspberry Pi Debug Probe.

This product does not contain the USB A to USB micro cable data.
