Amplifier LNA 0.45dB NF 100M~2GHz 40dB Gain 20dBm P1dB SMA - 2 Stage High Gain
Designed by LOTUS in United States of AmericaThis seller is taking a break. Sign up below to get an email when they're back!
No shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up and we'll send a reminder when the seller returns!
LNA100M2G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 900 MHz, the amplifier typically provides 40 dB…

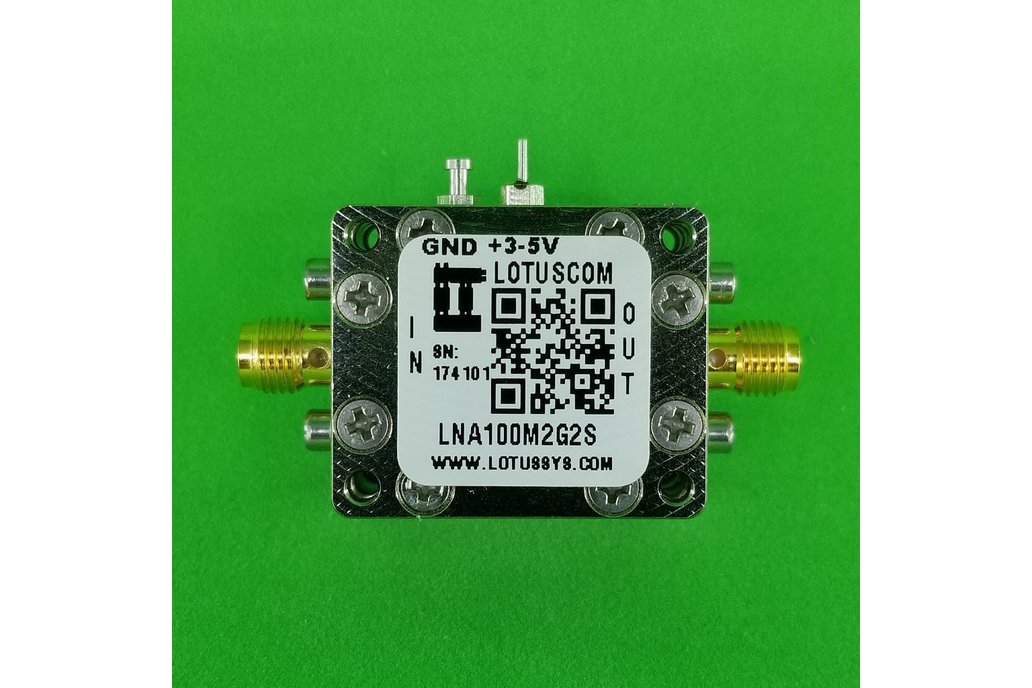

Read More…LNA100M2G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 900 MHz, the amplifier typically provides 40 dB gain, +36 dBm OIP3 at a 135 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +3V to +5V. Listed pictures include Product Picture and S Parameter from 100M to 2GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_001S
Features
Applications
Resources (PDF Datasheet)
