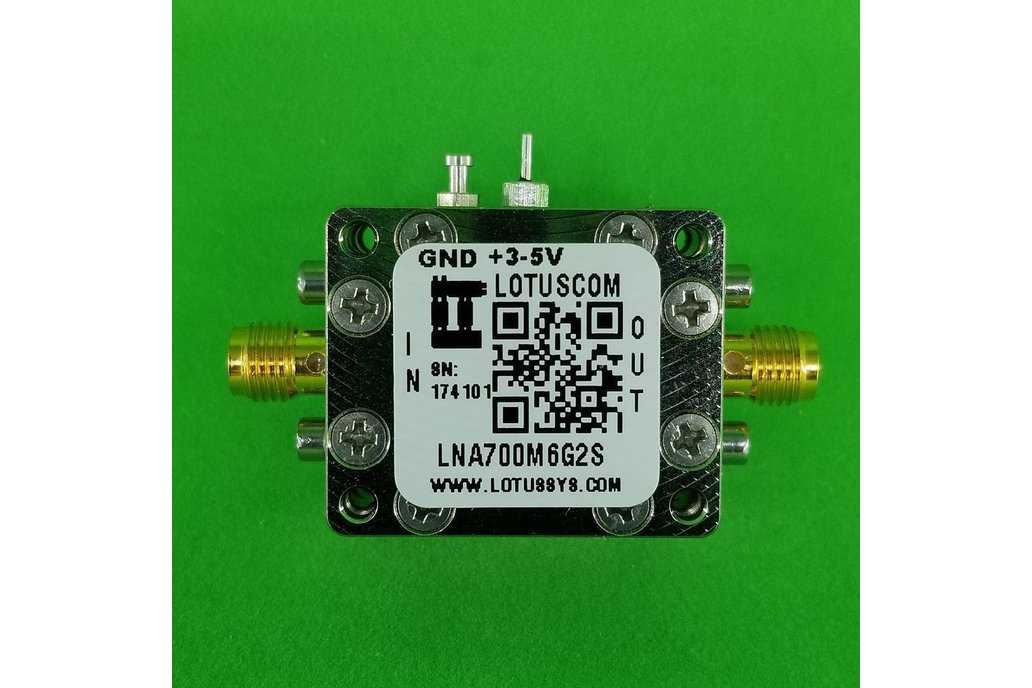

LNA700M6G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.95 GHz, the amplifier typically provides 40 dB gain, +35 dBm OIP3 at a 140 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3V to +5V. Listed pictures include Product Picture and S Parameter from 700M to 6GHz. SKU#: AK20_001C.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Features

• Frequency Range: 700 MHz to 6 GHz
• Noise Figure: typical 0.4 dB @ 1.95 GHz
• Gain: 40 dB Gain at 1.95 GHz
• Output P1dB: +22 dBm CW
• Output IP3: +35 dBm
• DC Voltage: +3 to +5V
• Operating Current: 140 mA
• Stainless Steel SMA Female Connector
• High Quality Rogers RO4350 RF PCB
• ROHS Compliant

Applications

• Repeaters/DAS
• Mobile Infrastructure
• LTE/WCDMA/CDMA/GSM
• General Purpose Wireless
• SDR & Ham Radio
• Test Instrumentation

Resources (PDF Datasheet)

LNA700M6G2S Datasheet
