LNA50M500M is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). At 250 MHz, the amplifier typically provides 23 dB gain, +36 dBm OIP3 at a 85 mA bias setting, and 1.0 dB noise figure. The LNA can be biased from a single supply +5V.

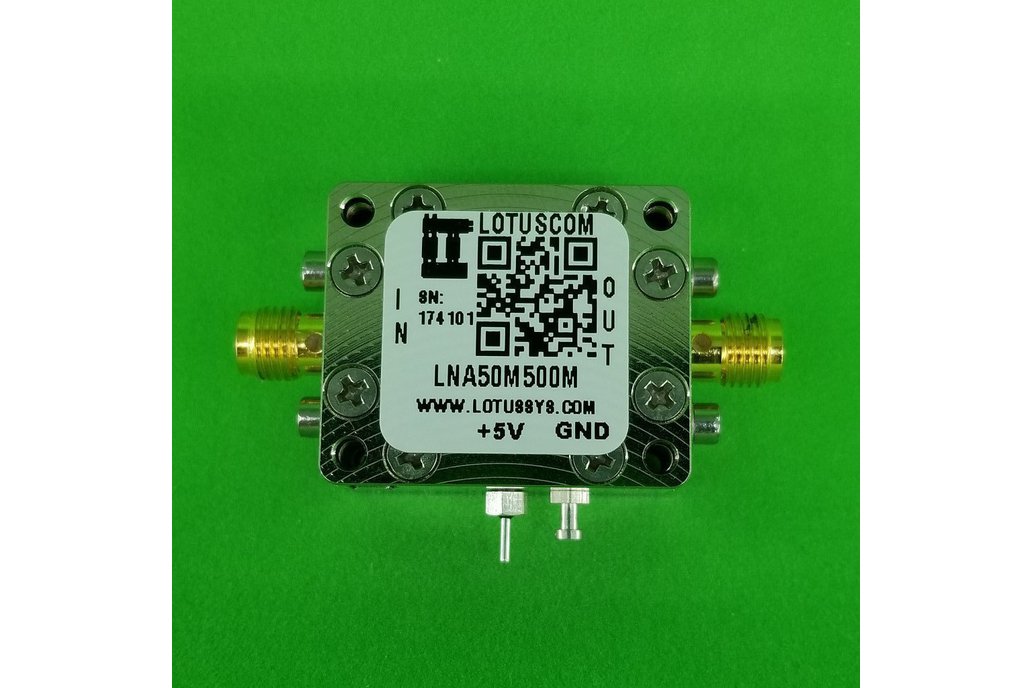

Listed pictures include Product Picture and S Parameter from 50 to 500 MHz. SKU#: AK20_002R.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.

Features

• Frequency Range: 50 MHz to 500 MHz
• Noise Figure: typical 1.0 dB @ 250 MHz
• Gain: 20 dB Gain at 1.95 GHz
• Output P1dB: +22 dBm CW
• Output IP3: +35 dBm
• DC Voltage: +5V
• Operating Current: 85 mA
• Stainless Steel SMA Female Connector
• High Quality Rogers RO4350 RF PCB
• ROHS Compliant

Applications

• Repeaters/DAS
• Mobile Infrastructure
• LTE/WCDMA/CDMA/GSM
• General Purpose Wireless
• SDR & Ham Radio
• Test Instrumentation

Resources (PDF Datasheet)

LNA50M500M Datasheet
