LNA6G17G is a broadband, GaAs MMIC low noise amplifier with 19 dB typical gain from 6 to 17 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Its output 1dB compression point is +14.5 dBm and third order linearity (OIP3) is typically 25 dBm.

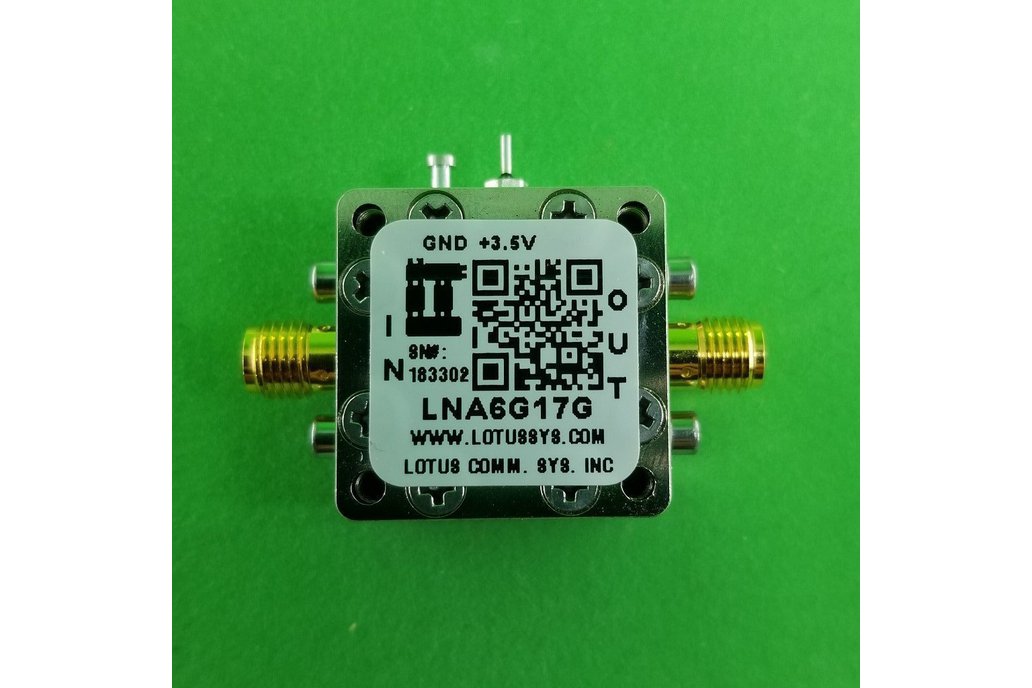

Listed pictures include Product Picture and S Parameter from 6 to 17GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20_003C

Features

• Frequency Range: 6GHz to 17GHz
• Noise Figure: typical 1.7dB
• Gain: typical 18.5dB
• Output P1dB: 14.5 dBm
• Output IP3: 25 dBm
• DC Voltage: +3.5V @ 80mA
• Stainless Steel SMA Female Connector
• High Quality Rogers RO4350 RF PCB
• ROHS Compliant

Applications

• Test Instrumentation
• Wideband A/D System
• General Purpose Wireless
• Radar & VSAT
• SDR & Ham Radio

Resources (PDF Datasheet)

LNA6G17G Datasheet
