LNA050M4P0G is a high-linearity, low noise amplifier designed for operation from 50MHz to 4GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). At 900 MHz, the amplifier typically provides 18 dB gain, +33 dBm OIP3 at a 54 mA bias setting, and 0.8 dB noise figure. The LNA can be biased from a single supply +3V to +5V. SKU#: AK16_001I.

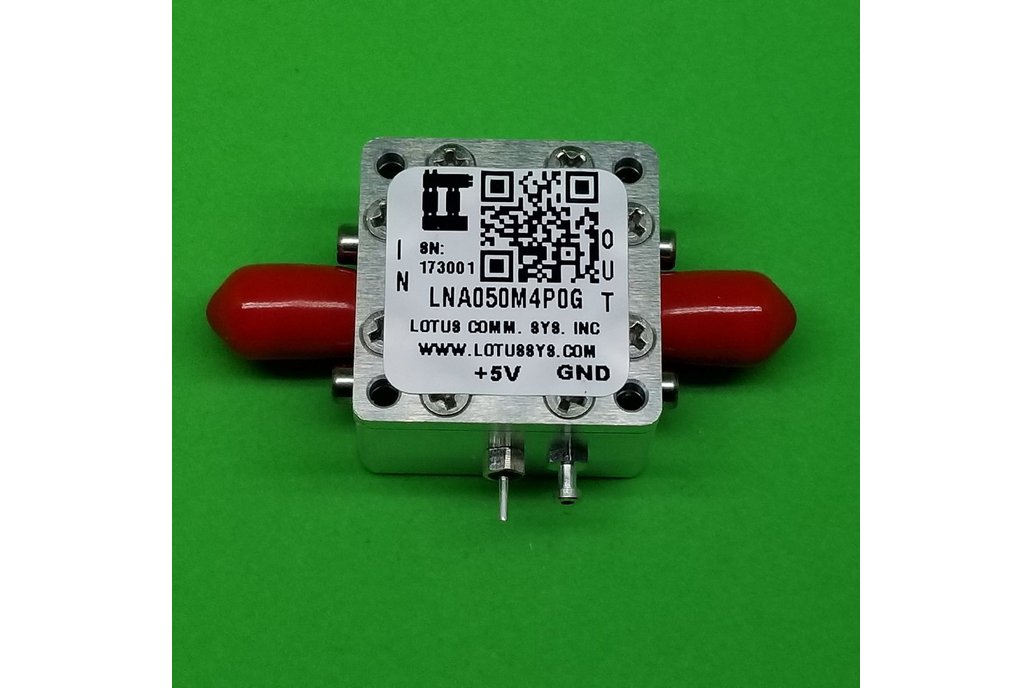

Listed pictures include Product Picture and S Parameter from 10MHz to 4GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Features

• Frequency Range: 50 MHz to 4 GHz
• Noise Figure: 0.8 dB @ 900 MHz, typical <1dB
• Gain: 18 dB Gain at 900MGHz
• Output P1dB: +22 dBm CW
• Output IP3: +33 dBm
• DC Voltage: +3 to +5V
• Operating Current: 54 mA
• Stainless Steel SMA Female Connector
• High Quality Rogers RO4350 RF PCB
• ROHS Compliant

Applications

• Repeaters/DAS
• Mobile Infrastructure
• LTE/WCDMA/CDMA/GSM
• General Purpose Wireless
• SDR & Ham Radio
• Test Instrumentation
