LNA600M6GFGR is a flat gain, high-linearity, ultra low noise amplifier in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It has integrated LDO Linear Regulator with industrial leading low noise (11µv rms). The LNA provides a 2dB flat gain (peak-to-peak) from 3 to 6 GHz. At 5.5 GHz, the amplifier typically provides 21 dB gain, +35.5 dBm OIP3 at a 56 mA bias setting, and 0.95 dB noise figure. The LNA can be biased from a single supply +5V to +15V. It can be powered by wide categories of power supplies (e.g., USB, Car Battery etc.).

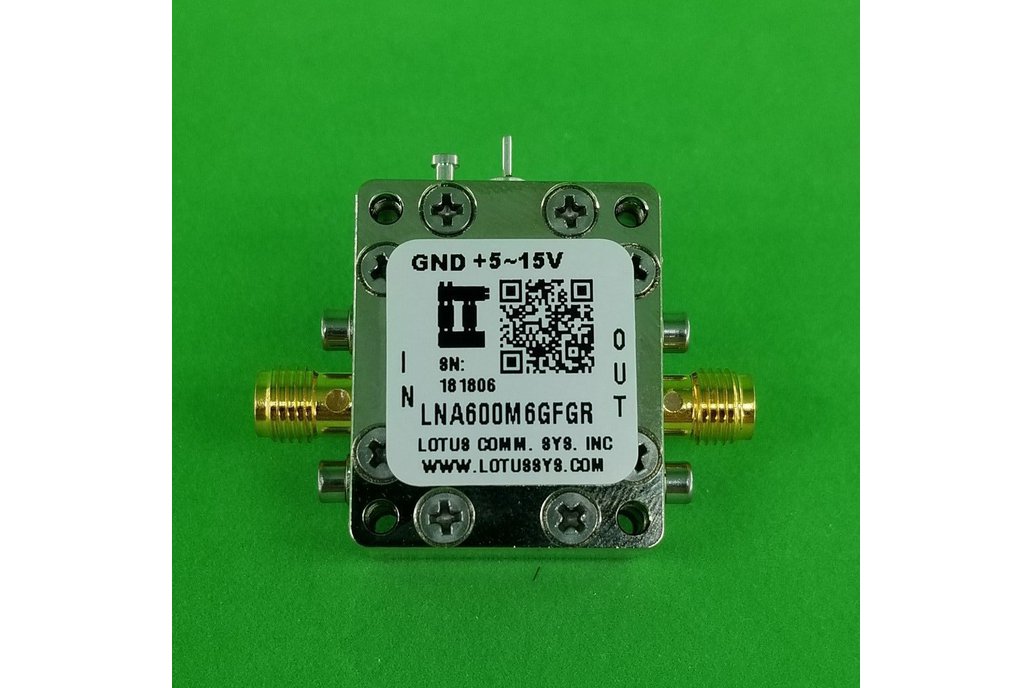

Listed pictures include Product Picture and S Parameter from 600M to 6GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_002P.

Features

• Frequency Range: 600 MHz to 6 GHz
• Noise Figure: typical 0.95 dB @ 5.5 GHz
• Gain: 21 dB Gain at 5.5 GHz
• Output P1dB: +19 dBm CW
• +35.5 dBm OIP3 at 65mA current
• DC Voltage: +3.3 to +5V
• Stainless Steel SMA Female Connector
• High Quality Rogers RO4350 RF PCB
• ROHS Compliant

Applications

• 4.5G, 5G Massive MIMO
• Repeaters/DAS
• Mobile Infrastructure
• LTE/WCDMA/CDMA/GSM
• General Purpose Wireless
• SDR & Ham Radio
• Test Instrumentation
