Broadband Ultra Low Noise Amplifier with LDO 0.45dB NF 100M~2GHz 20dB Gain SMA
Designed by LOTUS in United States of AmericaThis seller is taking a break. Sign up below to get an email when they're back!
No shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up and we'll send a reminder when the seller returns!
LNA100M2GR is a high-linearity, ultra low noise amplifier in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It has integrated LDO Linear Regulator with industrial leading low no…
Read More…LNA100M2GR is a high-linearity, ultra low noise amplifier in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It has integrated LDO Linear Regulator with industrial leading low noise (11µv rms). At 900 MHz, the amplifier typically provides 20 dB gain, +36 dBm OIP3 at a 68 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +5V to +15V. It can be powered by wide categories of power supplies (e.g., USB, Car Battery etc.).

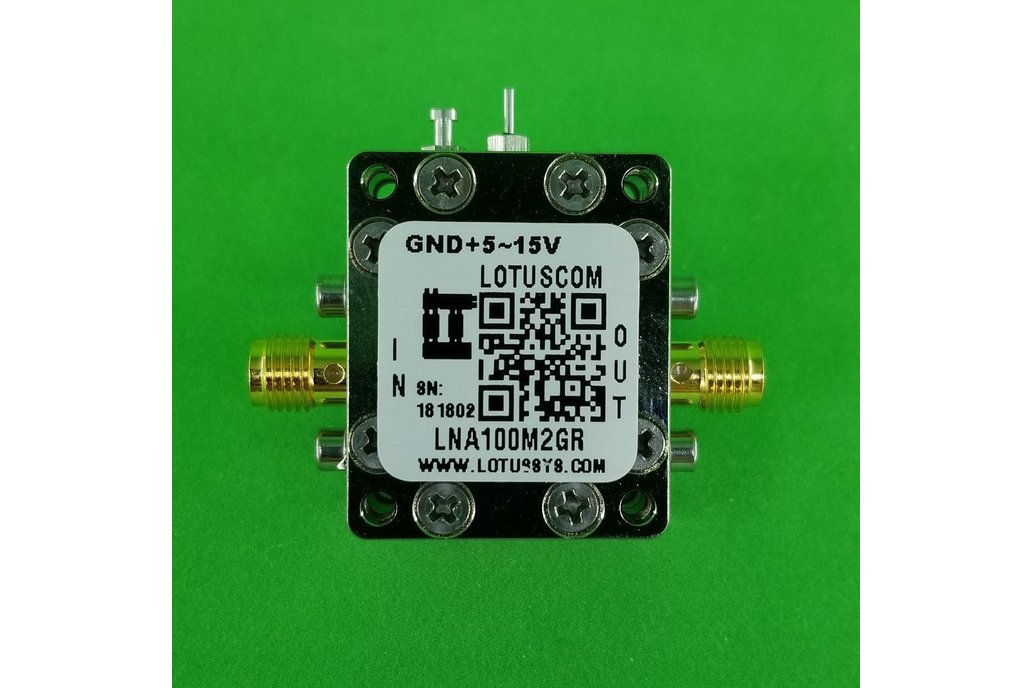

Listed pictures include Product Picture and S Parameter from 100M to 2GHz. SKU#: AK20-002Q.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts
Features
Applications
