Filter- Band Pass Filter (Center Freq.:1945MHz)

Name: Filter- Band Pass Filter (Center Freq.:1945MHz)
SKU: 8810
Price: 44.00 USD
Availability: OutOfStock

LTCC Band Pass Filter -Center Freq: 1945MHz, Pass band (1850-2040 MHz)

Designed by LOTUS in United States of America

This seller is taking a break. Sign up below to get an email when they're back!

Filter- Band Pass Filter (Center Freq.:1945MHz) 1

Filter- Band Pass Filter (Center Freq.:1945MHz) 2

Filter- Band Pass Filter (Center Freq.:1945MHz) 3

Filter- Band Pass Filter (Center Freq.:1945MHz) 4

$44.00 (40,42 € EUR)

Shipping to Ireland starts at $50.00 (45,93 € EUR)

Free shipping is available to Ireland!

Ships from United States of America

On A Break

Affortable Modular RF Systems

LTCC Band Pass Filter -Center Freq: 1945MHz, Pass band (1850-2040 MHz)

BPF1945M200M LTCC Band Pass Filter. Enclosure is using RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of the Part measured on VNA is shown in second picture. Operational Temperature: …

BPF1945M200M LTCC Band Pass Filter.

Enclosure is using RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of the Part measured on VNA is shown in second picture.

Operational Temperature: -55 ~ 100C
Temperature Stable
Center Frequency: 1945 MHz
RF Power Input: 1.5W max. at 25C, derate linearly to 0.25W at 100C
3dB Pass Band: 1850-2040 MHz
Insertion Loss: (2.0dB typical)
High Quality Stainless Steel SMA Female Connector

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

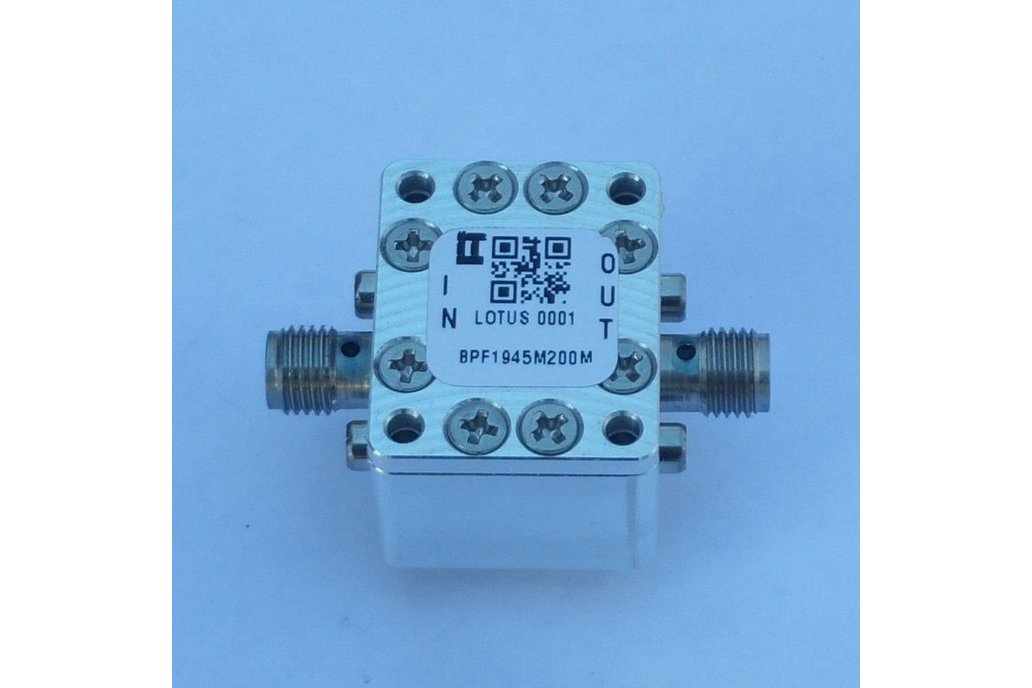

This BPF Module includes the RF Enclosure as shown in picture.

Proudly MADE IN USA.
