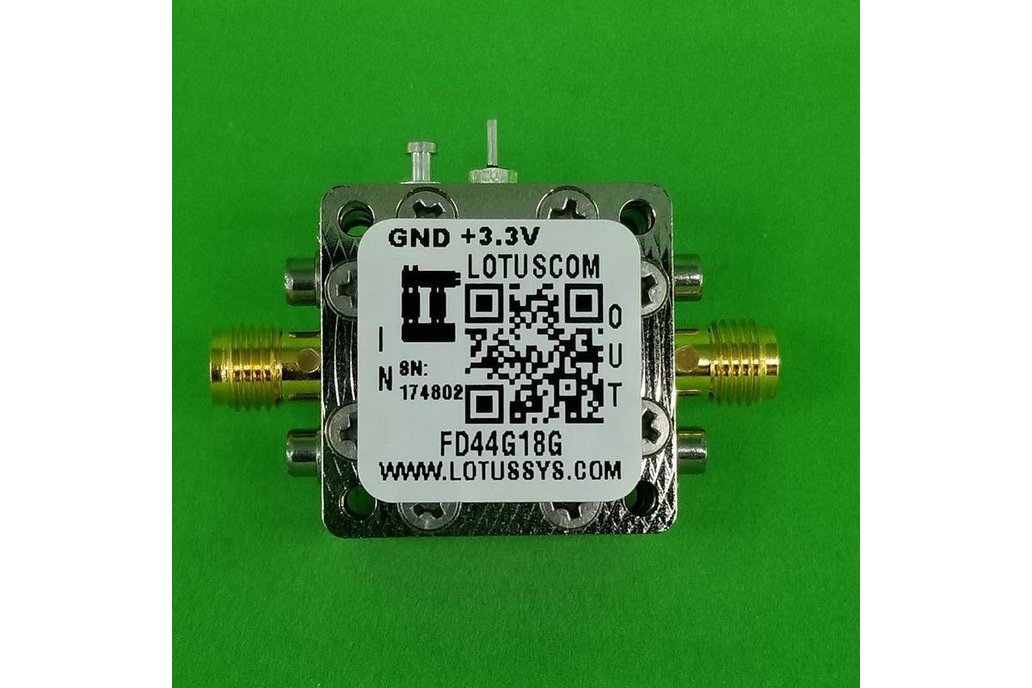

FD44G18G is a Divide by M=4 Frequency divider with input frequency range from high frequency 4G to 18 GHz with a single +3.3 DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

Features:

• Frequency Range: 4 to 18 GHz
• Divider by M: (M=4)
• Operating Temperature -40 to +105C
• Input Power Range: Min. -10 dBm, Max. +10 dBm
• SSB Phase Noise (100 KHz offset) at Fin =12 GHz, Pin=0 dBm, -150 dBc/Hz
• Supply current (Icc) typical 30 mA
• Supply Voltage Vcc=+3.3 V
• High Quality Stainless Steel SMA Female Connector
• High Quality Isola-Tera RF PCB (very low loss and high thermal performance)
• ROHS Compliant

Applications:

• Microwave Radio
• Test Instrumentation
• Satellite Communication/Software Defined Radio/Ham Radio

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
