Frequency Mixer 3.7G - 10GHz RF and DC - 4G IF (Passive)
Designed by LOTUS in United States of AmericaThis seller is taking a break. Sign up below to get an email when they're back!
No shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up and we'll send a reminder when the seller returns!
MIX3P7G10G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (3700 to 10000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.0d…
Read More…MIX3P7G10G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (3700 to 10000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter.
Features:
Applications:

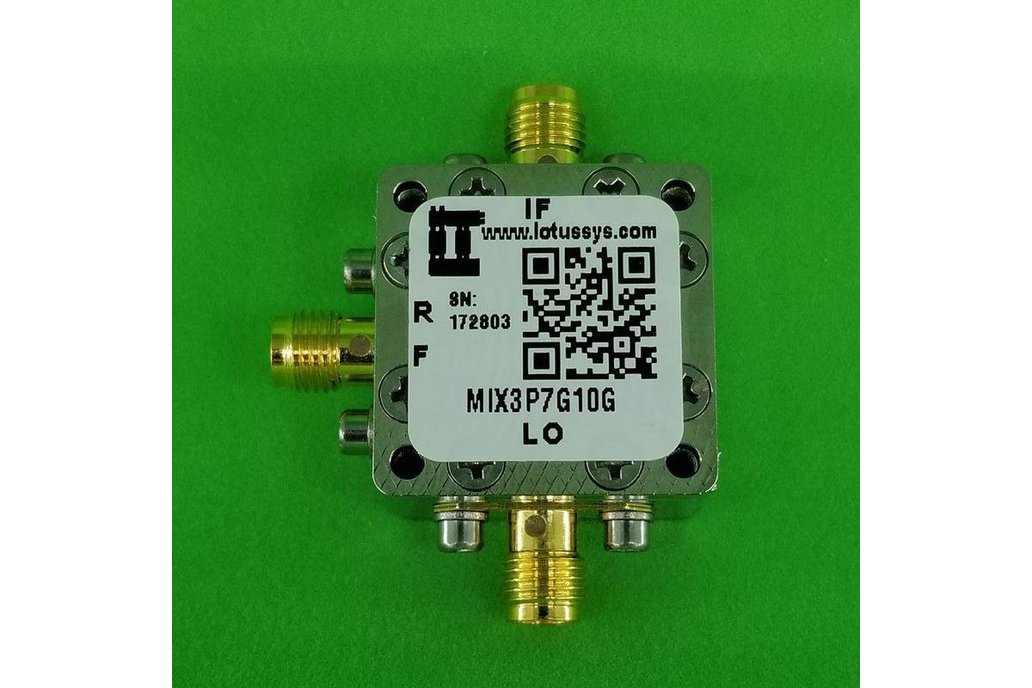

This Mixer includes the RF Enclosure as shown in picture.
Click https://cdn.shopify.com/s/files/1/1592/7469/files/MIX3P7G10G.pdf to see detailed specification.
Proudly MADE IN USA.
