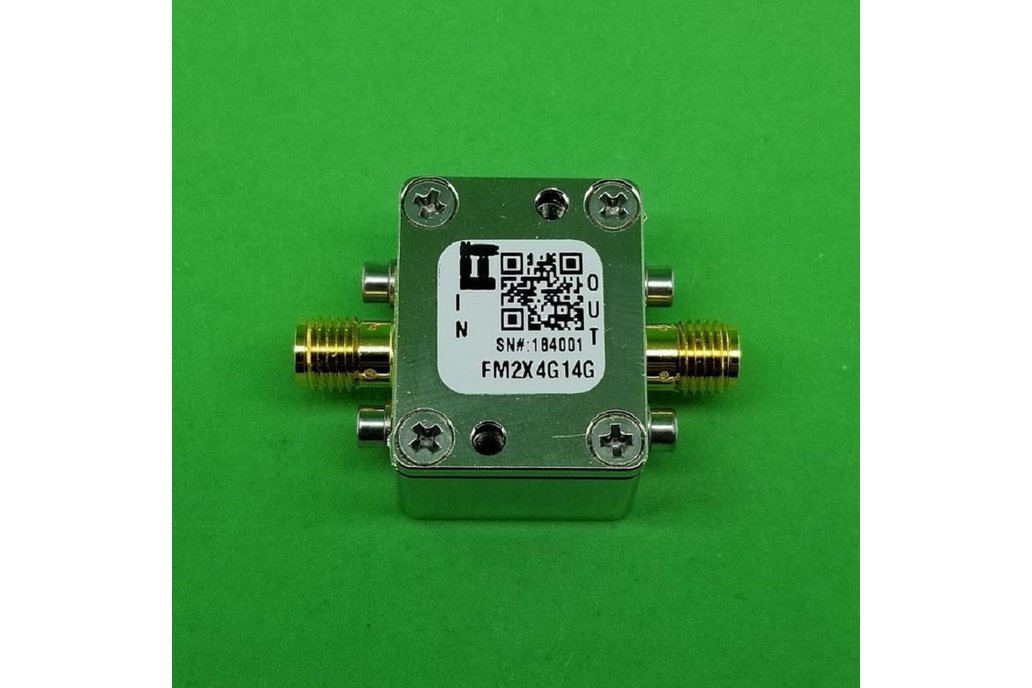

FM2X4G14G is a passive Frequency Multiplier X2 with input frequency range from 2 GHz to 7 GHz and output frequency range from 4 GHz to 14 GHz.

Enclosure is using RF Design Kit 6UCD2W6S1P2 with dimension 0.75"x0.9375x0.59".

Features:

• Multiply by M: (M=2)
• Low Conversion Loss, 12 dB
• Good fundamental and harmonic suppression
• Input Frequency Range: 2 GHz to 7 GHz
• Output Frequency Range: 4 GHz to 14 GHz
• Operating Temperature -40 to +85C
• Input Power Range: +12 to +18 dBm

Applications:

• Synthesizer, Local Oscillators
• Microwave Radio
• Test Instrumentation
• Satellite Communication/Software Defined Radio/Ham Radio

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_003T

Resources:

FM2X4G14G PDF Data Sheet
