RF Prototype Base Plate (160mmx100mm)
Designed by LOTUS in United States of AmericaThis seller is taking a break. Sign up below to get an email when they're back!
No shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up and we'll send a reminder when the seller returns!
Gold Plated (ENIG) Prototyping Base Plate The prototyping Base Plate (BP) has 3/16” Uniform (Square) hole spacing and can be used to mount and align Lotus RF modules. The size of the Base Plate is s…
Read More…Gold Plated (ENIG) Prototyping Base Plate

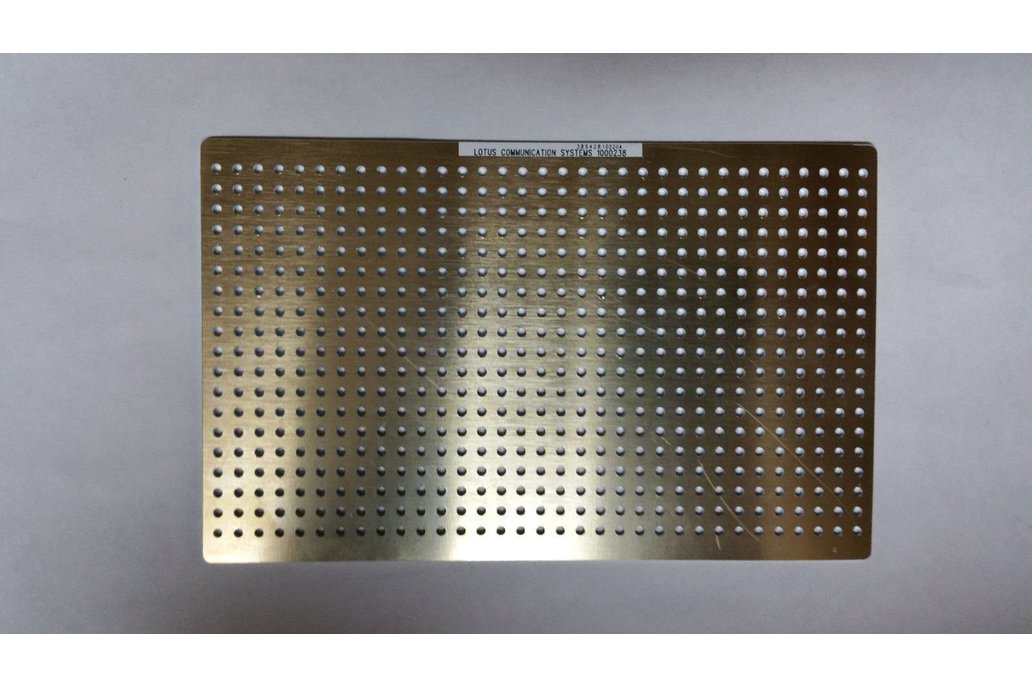

The prototyping Base Plate (BP) has 3/16” Uniform (Square) hole spacing and can be used to mount and align Lotus RF modules. The size of the Base Plate is standard 3U Size with Length(160mm)xWidth(100mm).
The Base Plate is made by 1/16” Aluminum PCB. One side (where you will mount the RF modules) of PCB is plated with Electroless Nickel Immersion Gold (ENIG) for superior electrical conductivity.
There are 19x33 = 627 holes (0.1” hole size) on a 3/16” grid for mounting Lotus RF Enclosure modules. Lotus RF enclosure modules can be mounted using #2-56 Socket Head Cap Screw and Nuts. A designer can quickly assembly a prototype RF system using this Base Plate.
In addition to quick prototyping, this RF base plate can be mounted to 3U enclosure or Chassis for system integration. For example, this base plate can be mounted to Hammond Extruded Aluminum Enclosure 1455L1601, 1455N1601, Watertight Enclosure 1457L1601, 1457N1601, and EMI/RFI Enclosure 1457L1601E, 1457N1601E.
Features:
Applications:
