USB WLED Addressable LED Controller WS2812b WS2811

Name: USB WLED Addressable LED Controller WS2812b WS2811
SKU: 35297
Price: 29.00 USD
Availability: InStock

The controller supports USB type-c connection. Through which the controller can be powered and LEDs can be addressed.

Designed by smartseed.lt in Lithuania

USB WLED Addressable LED Controller WS2812b WS2811 1

USB WLED Addressable LED Controller WS2812b WS2811 2

USB WLED Addressable LED Controller WS2812b WS2811 3

USB WLED Addressable LED Controller WS2812b WS2811 4

USB WLED Addressable LED Controller WS2812b WS2811 5

USB WLED Addressable LED Controller WS2812b WS2811 6

USB WLED Addressable LED Controller WS2812b WS2811 7

USB WLED Addressable LED Controller WS2812b WS2811 8

USB WLED Addressable LED Controller WS2812b WS2811 9

USB WLED Addressable LED Controller WS2812b WS2811 10

USB WLED Addressable LED Controller WS2812b WS2811 11

USB WLED Addressable LED Controller WS2812b WS2811 12

USB WLED Addressable LED Controller WS2812b WS2811 13

USB WLED Addressable LED Controller WS2812b WS2811 14

USB WLED Addressable LED Controller WS2812b WS2811 15

USB WLED Addressable LED Controller WS2812b WS2811 16

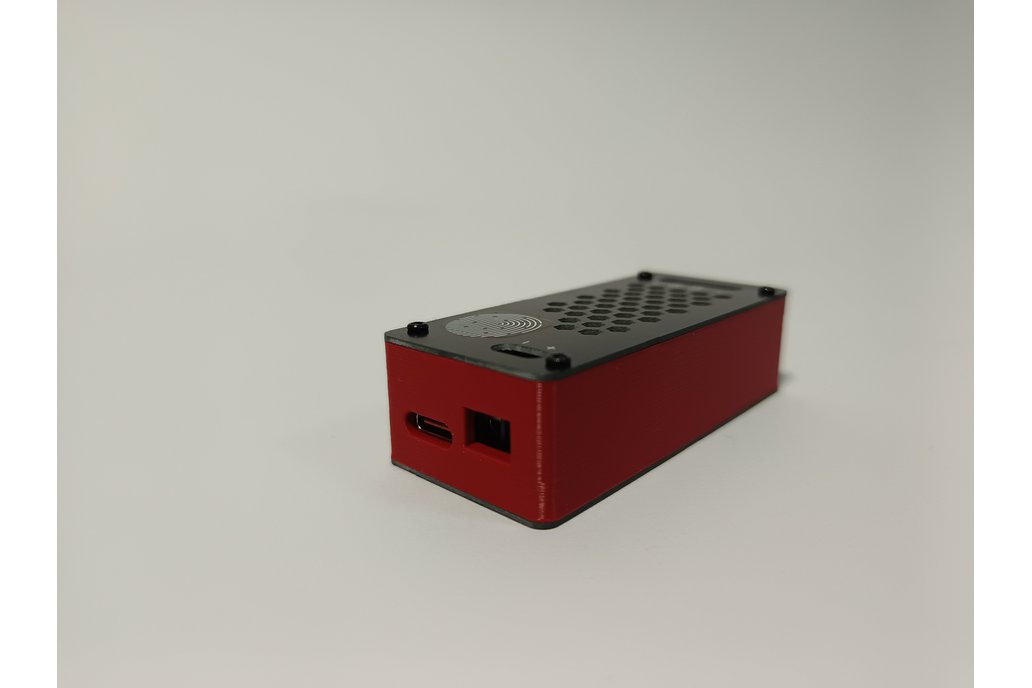

2024-07-27T11:13:53.606Z-WLED Cotroller (22).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (32).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller WS2812b WS2811.jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (1).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (12).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (9).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (13).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (21).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (25).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (15).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (17).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (23).jpg


2024-07-27T11:13:53.606Z-WLED Cotroller (26).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (27).jpg

2024-07-27T11:13:53.606Z-WLED Cotroller (31).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

The controller supports USB type-c connection. Through which the controller can be powered and LEDs can be addressed.

The controller supports USB type-c connection. Through which the controller can be powered and LEDs can be addressed. And it is possible to choose the supply voltage 5 or 12v WLED USB controller spec…

The controller supports USB type-c connection. Through which the controller can be powered and LEDs can be addressed. And it is possible to choose the supply voltage 5 or 12v

WLED USB controller specification:

ESP8266 ( ESP-07)
4 logical inputs (only 2 can be used at the same time) input voltage from 3.3 to 24v
5v output max current 50mA (always 5v regardless of controller supply voltage)
3.3v output max current 100mA (always 3.3v regardless of controller supply voltage)
power and data connection DG300-5.0-02P13
USB power contoller CH224K
Touch button controller TTP233
Logic lever shifter SN74LVC2G17
Two outputs D1 and D2 are for connecting an addressable LED. Supports two LED strips or one LED strip if clock pin and data pin is needed. Such as SK9822
The sides of the case are PLA plastic, the top and bottom are FR4 material. Very strong body.
Power supply DC 5-24V or USB-type C (5v or 12V. Selectable by side switch)
Size: 80x35x22mm
