What is it?

This is a autoswitching power multiplexer based on the TPS2115A. This IC has the following features:

• 84mOhm RDSon
• Reverse and cross-conducting blocking
• Operating voltage range of 2.8V to 5.5V
• Adjustable current limit (set to around 1.25A)
• Thermal shutdown

Please take a look at the TI datasheet for complete information on this IC.

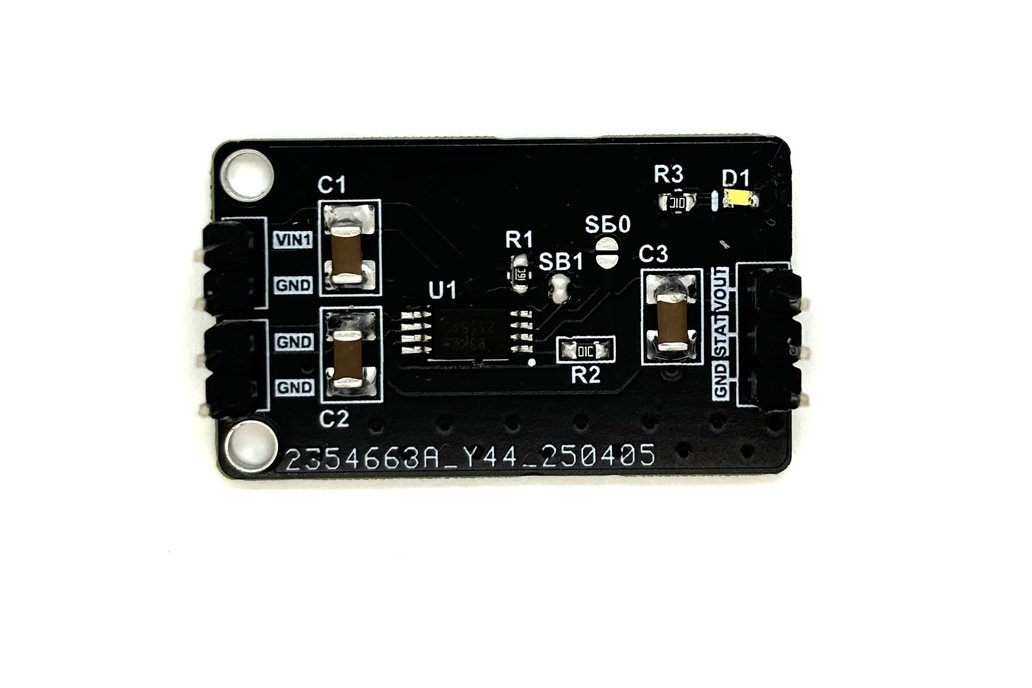

SB1 comes shorted, meaning the IC is set for auto-select between the two input power supplies. Large bulk caps are used at both of the inputs and the output to ensure any ripple voltage is filtered. The board features 3 x 0.1" (2.54mm) pitch connectors for connecting the two voltage supplies and the output. The status pin is pulled to VOUT and is available on J3.

This is a great board to use for single-cell Li-Ion applications! Please check out our 5W (1A) boost converter!

What makes it special?

Designed, built and made in the U.S.A! We use genuine and high quality parts.

Please check out our other listings. We have plenty of boards available for embedded software and hardware development. Custom work available to suit your needs.
