3.3V CAN Transceiver with CAN-FD TCAN332 Breakout

Name: 3.3V CAN Transceiver with CAN-FD TCAN332 Breakout
SKU: 36816
Price: 7.00 USD
Availability: InStock

3.3V CAN Transceiver with CAN-FD - TCAN332 Breakout

Designed by M12 Labs in United States of America

3.3V CAN Transceiver with CAN-FD TCAN332 Breakout 2

3.3V CAN Transceiver with CAN-FD TCAN332 Breakout 3




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

3.3V CAN Transceiver with CAN-FD - TCAN332 Breakout

What is it? This is a breakout board for the TCAN332 3.3V CAN Transceiver (with CAN-FD) IC. It breaks out the CAN-RX, CAN-TX, CANH and CANL pins (along with the the 3.3V power pins). An optional 120O…

What is it?

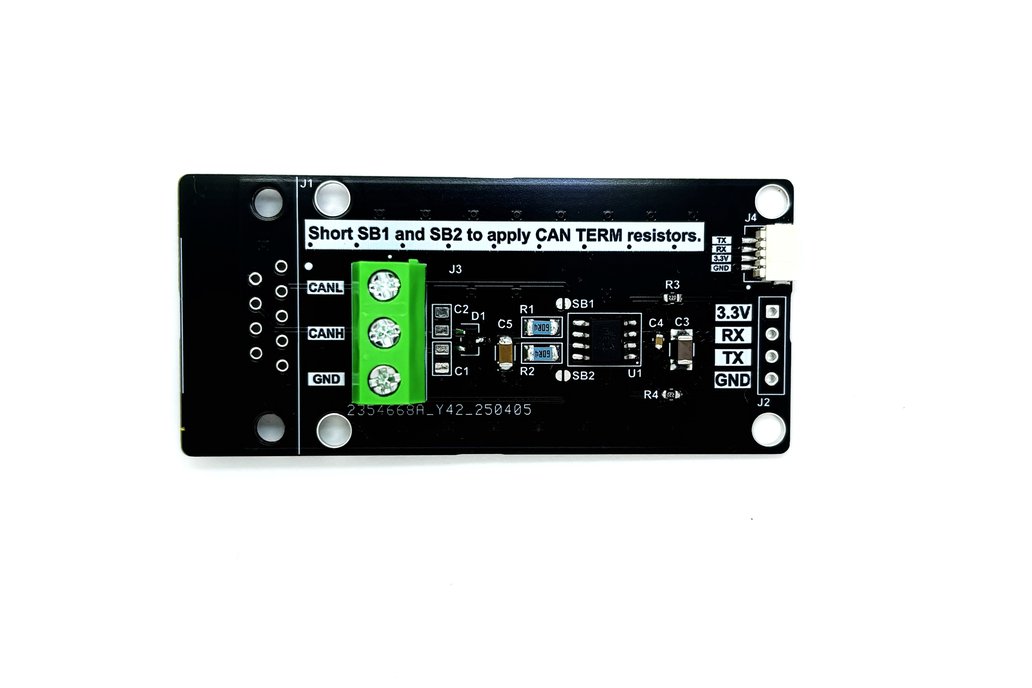

This is a breakout board for the TCAN332 3.3V CAN Transceiver (with CAN-FD) IC. It breaks out the CAN-RX, CAN-TX, CANH and CANL pins (along with the the 3.3V power pins). An optional 120Ohm CAN Termination is provided.

J1 is a DB9 connector that can be soldered, which provides the standard pin 2 (CANL) and 7 (CANH) CAN connections. Pin 6 is connected to GND. A DB9 connector can be purchased separately.

J3 provides the CANH, CANL and GND connections on a 5mm spaced terminal block.

The TCAN332DR CAN Transceiver operates at 3.3V, making it perfect for MCUs like the ESP32. Data rate for this particular IC is upto 1Mbps. The IC has all of the standard protections makig it perfect for industrial use. A CAN ESD diode is also populated to provide protection for the CAN Bus. Optionally C1 and C2 can be populated with 47pF / 50V / 0805 capacitors for added protection.

Even though the Transceiver operates at 3.3V, it is fully compliant with 5V Transceivers (please see the TI datasheet for more info).

All components used are able to be used with an operating temperature range of -40 degC to + 85 degC.

Board is built in the USA!

Why did you make it?

I made this board because I didn't see too many options for 3.3V CAN Transceivers. I needed something that I could use with the ESP32 and decided to make this board.
