Molex 1053071203 to Molex 5025780300

Name: Molex 1053071203 to Molex 5025780300
SKU: 36713
Price: 26.90 USD
Availability: InStock

Cable Adapter - Molex 1053071203 to Molex 5025780300 - 1:1, Black Wire, 12" - Made to Order

Designed by HI-Harnesses in United States of America








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Looking for a fully custom solution? Visit our website hi-harnesses.com to explore our online design tool, request a quote, or learn more about our capabilities.

Cable Adapter - Molex 1053071203 to Molex 5025780300 - 1:1, Black Wire, 12" - Made to Order

This is a 12-inch, 1-to-1 cable adapter, perfect for bridging connections between two compatible devices or components. In a 1-to-1 configuration, each pin on Connector 1 connects directly to the cor…

This harness is a 1:1 adapter for a Molex 1053071203 Nano-Fit 105307 Series to Molex 5025780300 CLIK-Mate 502578 Series. Please review the drawing diagram and BOM for additional details on the wire gauge and part numbers used in this assembly.

Bill of Material:

Description	Qty	Designators	Manufacturer	MPN	Supplier	SPN

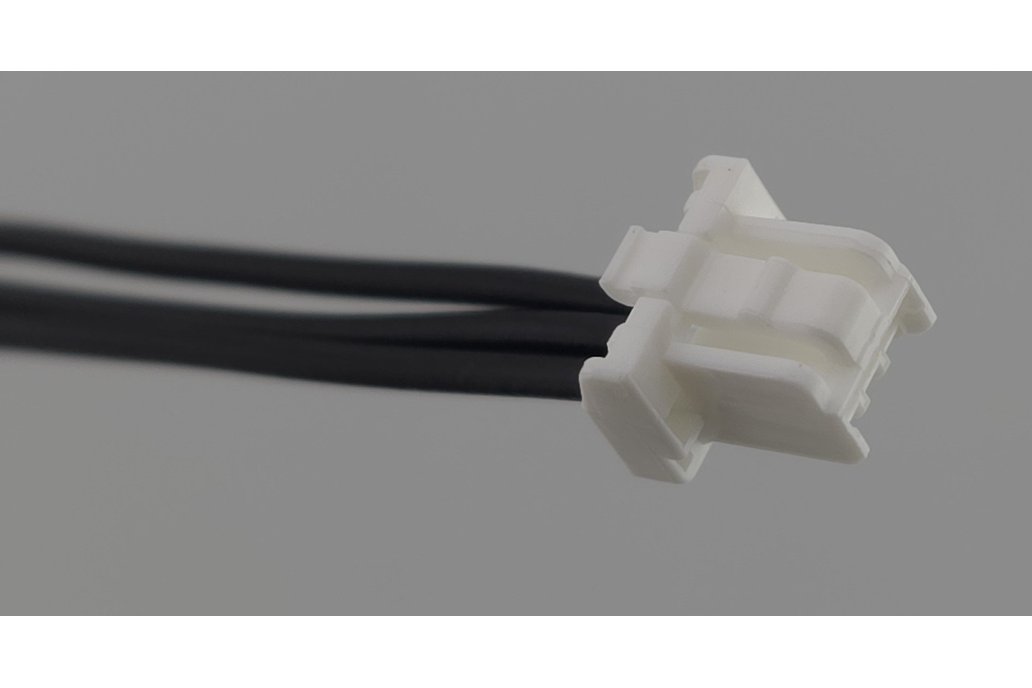

Connector, CLIK-Mate 502578, Plug, 3 pins	1.0	X1	Molex	5025780300	Digi-Key	WM11230-ND
Connector, Nano-Fit 105307, Receptacle, 3 pins	1.0	X2	Molex	1053071203	Digi-Key	WM14959-ND
Crimp, 1053002200, Molex Nano-Fit 105307 Contact 22-20 AWG	3.0	X2	Molex	1053002200	Digi-Key	WM14957CT-ND
Crimp, 5025790000, Molex CLIK-Mate 502578 Contact 28-22 AWG	3.0	X1	Molex	5025790000	Digi-Key	WM9735CT-ND
Wire, 22 AWG, BK	36.0	W1	Remington Industries	22UL1007STRBLA1000	Digi-Key	2328-22UL1007STRBLA1000-ND

About HI-Harnesses:

At HI-Harnesses, we’re dedicated to making professional-grade cabling accessible to makers, hobbyists, and small businesses. Custom tooling can be prohibitively expensive, especially for low-volume projects, but we believe that quality should never be compromised. That’s why we exclusively use manufacturer-recommended tooling to ensure a high-quality crimp for every connection. No need to struggle with pliers or tweezers here!

Each of our products, including this adapter, is made to order right here in Columbus, Ohio, ensuring careful attention to quality and detail.

Looking for a custom design? Visit our website to explore our online design tool, where you can create your own cable solutions or upload a custom design for a tailored quote. With HI-Harnesses, you can bring your ideas to life without sacrificing quality or budget.
