Cable Adapter - Molex 2002771103 to Molex 43640-0301 - 1:1, Black Wire, 12" - Made to Order
Designed by HI-Harnesses in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Looking for a fully custom solution? Visit our website hi-harnesses.com to explore our online design tool, request a quote, or learn more about our capabilities.
This is a 12-inch, 1-to-1 cable adapter, perfect for bridging connections between two compatible devices or components. In a 1-to-1 configuration, each pin on Connector 1 connects directly to the cor…
Read More…This is a 12-inch, 1-to-1 cable adapter, perfect for bridging connections between two compatible devices or components. In a 1-to-1 configuration, each pin on Connector 1 connects directly to the corresponding pin on Connector 2—pin 1 goes to pin 1, pin 2 to pin 2, and so on.
This harness is a 1:1 adapter for a Molex 2002771103 Nano-Fit 200277 Series to Molex 43640-0301 Micro-Fit 3.0 43640 Series. Please review the drawing diagram and BOM for additional details on the wire gauge and part numbers used in this assembly.
Bill of Material:
Description | Qty | Designators | Manufacturer | MPN | Supplier | SPN |
---|---|---|---|---|---|---|

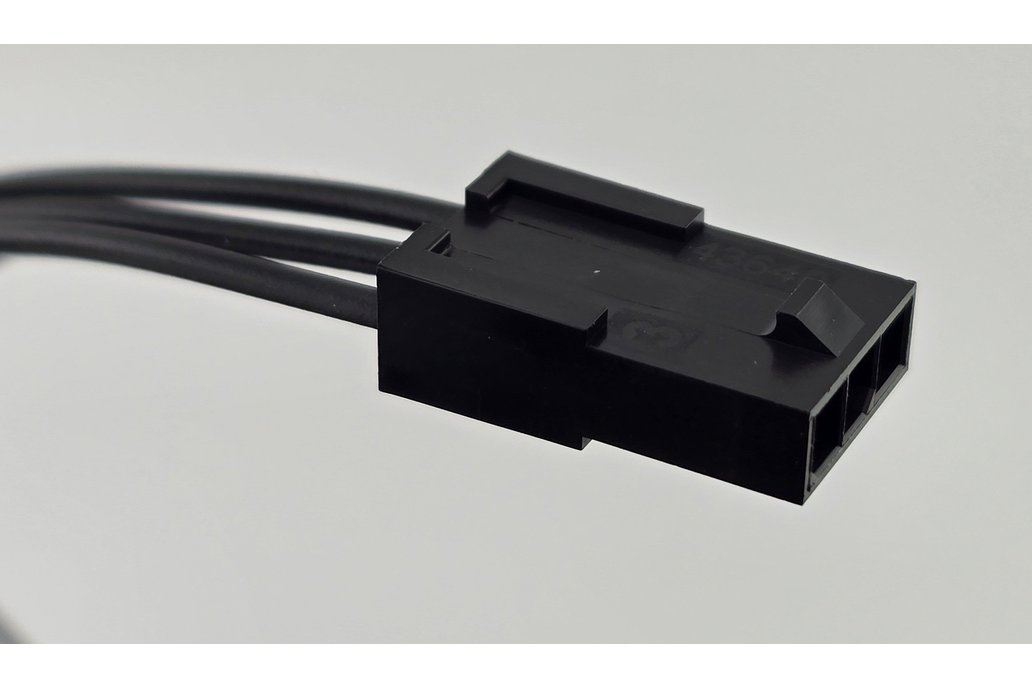

Connector, Micro-Fit 3.0 43640, Plug, 3 pins | 1.0 | X1 | Molex | 43640-0301 | Digi-Key | WM1856-ND |
Connector, Nano-Fit 200277, Plug, 3 pins | 1.0 | X2 | Molex | 2002771103 | Digi-Key | WM26670-ND |
Crimp, 2014472200, Molex Nano-Fit 200277 Contact 22-20 AWG | 3.0 | X2 | Molex | 2014472200 | Digi-Key | 900-2014472200CT-ND |
Crimp, 43031-0009, Molex Micro-Fit 3.0 43640 Contact 24-20 AWG | 3.0 | X1 | Molex | 43031-0009 | Digi-Key | WM1843-ND |
Wire, 20 AWG, BK | 36.0 | W1 | Remington Industries | 20UL1007STRBLA1000 | Digi-Key | 2328-20UL1007STRBLA1000-ND |
About HI-Harnesses:
At HI-Harnesses, we’re dedicated to making professional-grade cabling accessible to makers, hobbyists, and small businesses. Custom tooling can be prohibitively expensive, especially for low-volume projects, but we believe that quality should never be compromised. That’s why we exclusively use manufacturer-recommended tooling to ensure a high-quality crimp for every connection. No need to struggle with pliers or tweezers here!
Each of our products, including this adapter, is made to order right here in Columbus, Ohio, ensuring careful attention to quality and detail.
Looking for a custom design? Visit our website to explore our online design tool, where you can create your own cable solutions or upload a custom design for a tailored quote. With HI-Harnesses, you can bring your ideas to life without sacrificing quality or budget.
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when Molex 2002771103 to Molex 43640-0301 can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Shipping Rate | Tracked | Ships From | First Item | Additional Items |
---|---|---|---|---|
:
|
At HI-Harnesses, each order is custom-built to your specifications, ensuring that you receive a high-quality, made-to-order product. Our typical lead time is 10 business days from the time of purchase to shipment, allowing us to meticulously assemble and test each harness for optimal performance.
Once your order is complete, you will receive a notification with tracking information, so you can follow your shipment’s progress until it arrives. Please note that during peak times or for large orders, lead times may vary slightly, but we will keep you informed every step of the way.
Thank you for choosing HI-Harnesses, where quality and reliability are our top priorities.
Quantity | Price |
---|---|
1-9 | $27.01 |
10-24 | $23.00 |
25-49 | $20.53 |
50-99 | $18.31 |
100+ | $16.56 |
