GPIO Diagnostics Board for Flipper Zero

Name: GPIO Diagnostics Board for Flipper Zero
SKU: 31151
Price: 12.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

(1 Review)

Helps you test the GPIO outputs on your Flipper Zero

Designed by MakeItHackin in United States of America

GPIO Diagnostics Board for Flipper Zero 1

GPIO Diagnostics Board for Flipper Zero 2

GPIO Diagnostics Board for Flipper Zero 3

GPIO Diagnostics Board for Flipper Zero 4

GPIO Diagnostics Board for Flipper Zero 5

GPIO Diagnostics Board for Flipper Zero 6

GPIO Diagnostics Board for Flipper Zero 7


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Helps you test the GPIO outputs on your Flipper Zero

GPIO Diagnostics Board for Flipper Zero This GPIO Diagnostics board helps you diagnose the output on the GPIO pins of your Flipper Zero. If you want to make sure the GPIO pins are correctly outputti…

GPIO Diagnostics Board for Flipper Zero

This GPIO Diagnostics board helps you diagnose the output on the GPIO pins of your Flipper Zero. If you want to make sure the GPIO pins are correctly outputting a signal, this board will help you do that! The easiest way to troubleshoot is by using the GPIO menu in the Flipper and testing individual pin outputs or 'ALL' pins.

Red LEDs illuminate when power is on the 3.3V and 5V pins. 3.3V should always be on and 5V is turned on through the GPIO settings.
Yellow LEDs illuminate for all other pins (PA7, PA6, PA4, PB3, PB2, PC3, PC1, PC0).
Yellow LEDs will also illuminate when power/data is delivered through the data pins when applicable (SWC, SIO, TX, RX, 1W).

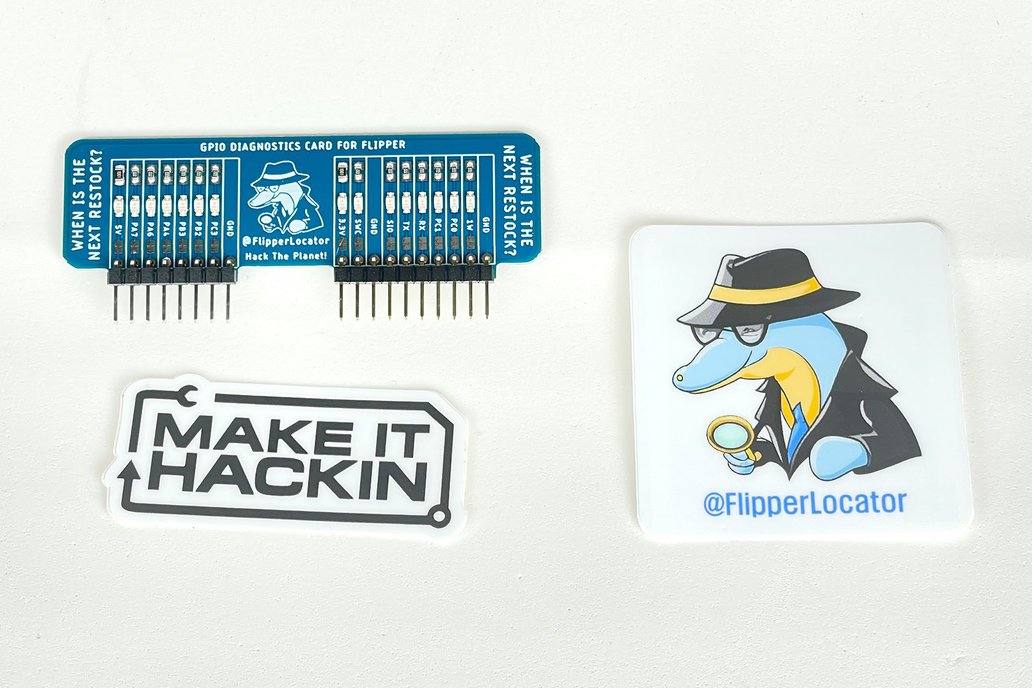

Pins have already been soldered onto the board, so the Diagnostics Board is plug-and-play!

LED ANIMATIONS:

Check out @CodeAllNight's project to animate the LEDs on this board. Super cool!
Pair this with the 3D printed holder and lanyard to transform your Flipper into wearable tech!

Stickers are also included :)

Flipper shown in pictures is for reference only and not included with purchase.
