BluChip Plus - Tiny Bluetooth 5.0 Developer Board

Name: BluChip Plus - Tiny Bluetooth 5.0 Developer Board
SKU: 10897
Price: 25.99 USD
Availability: Discontinued

World's smallest FCC-approved breadboard-friendly BLE 5.0 breakout board (nRF52832)

Designed by MakerChips in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Breadboard" Related Products

Jumperless

Architeuthis Flux

$299.00

Ultimate Prototype Boards for Flipper Zero

MakeItHackin

$12.00

Breadboard Buddies

Hack Modular

$1.24

SC512 Prototyping Breakout Card Kit for Z50Bus

Stephen C Cousins

$10.00

BluChip Plus - Tiny Bluetooth 5.0 Developer Board 1

BluChip Plus - Tiny Bluetooth 5.0 Developer Board 2

BluChip Plus - Tiny Bluetooth 5.0 Developer Board 3

BluChip Plus - Tiny Bluetooth 5.0 Developer Board 4

BluChip Plus - Tiny Bluetooth 5.0 Developer Board 5






World's smallest FCC-approved breadboard-friendly BLE 5.0 breakout board (nRF52832)

Note: As shown in the schematic, we accidentally placed a capacitor in series with the LED. This means that the LED can't be used, but the board is otherwise completely functional and we're discounting this production run as a result. You can replace the capacitor with a resistor if you need the LED, or simply ignore it and enjoy saving almost 40% off the usual price

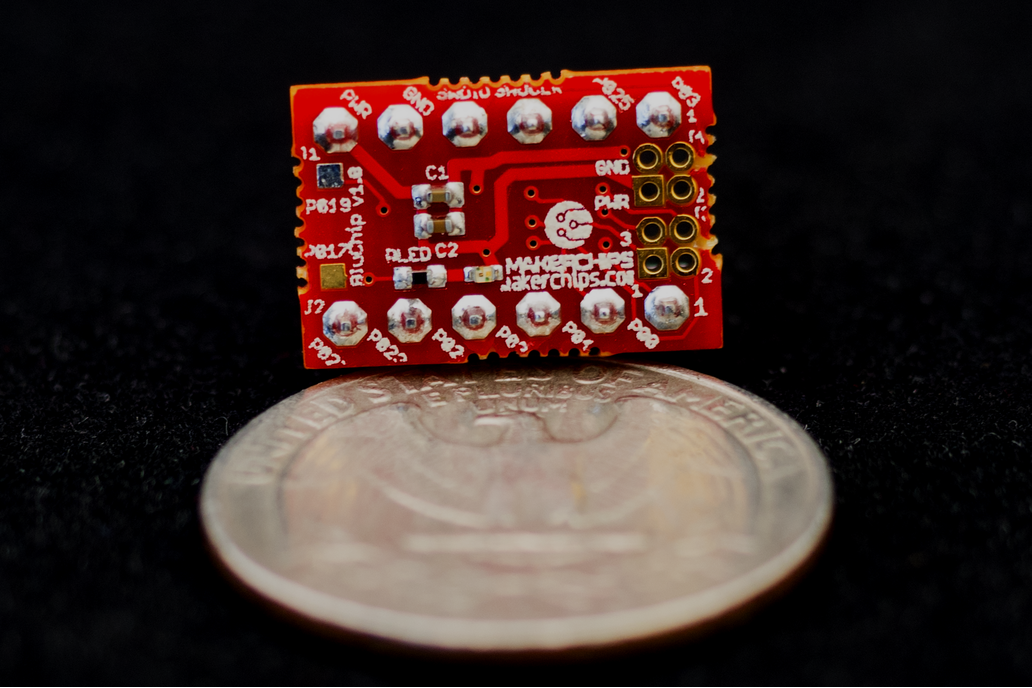

MakerChips has produced the smallest BLE 5.0 breakout board available today. The entire board is only 16.6 mm long by 11.15 mm wide (about the size of a dime) but still makes 8 GPIO pins easily accessible with .1" headers, 4 more GPIO available via .05" headers and 2 bonus GPIO available as test points. Along with the GPIO, the .1" and the .05" headers expose the pins necessary for power and programming. Incorporating a Nordic NRF52-based Taiyo Yuden BLE module means the entire package is certified for use in the USA/Japan/Canada and can be incorporated into commercial products.

We created the BluChip Plus line of modules because we could not find ultra-small, breadboard-friendly BLE boards for use in our rapid prototyping projects. You can use our board directly in your product, as a smaller and lower-cost alternative to the official Taiyo Yuden EYSHJNZWZ EVB, or as a stepping stone to your final design.

This module is designed around Nordic Semiconductor's nRF52832 series of chips. Compared to our BluChip product, this module provides significantly greater processor speed, hardware floating-point support, more RAM, lower power consumption, longer range, and a larger flash memory.

Key Features
