iMX RT1011 Nano Kit is a small, high-performing prototyping kit designed around NXP's iMX RT1011 Crossover MCU based on the Arm Cortex-M7 core, which operates at speeds up to 500 MHz to provide high CPU performance and best real-time response. It has 128 KB on-chip RAM that can be flexibly configured as TCM or general-purpose as well as numerous peripherals including high speed USB, UART, SPI, I2C, SAI, PWM, GPIO, ADC and etc to support a wide range of applications.

The design provides external 128 Mbit QSPI flash with XIP support, flexible power management, programmable LED and Button, easy-to-use form factor with USB-C and dual-row 40 pins in DIP/SMT type, including up to 33 multi-function GPIO pins (15 can be configured as ADC inputs) and Serial Wire Debug (SWD) port. Available with loose or pre-soldered headers, for even more flexibility in your projects.

It's shipped with UF2 Bootloader for easy firmware update. Zephyr RTOS and Python are supported as well for rapid prototyping.

Key Features

• NXP's MIMXRT1011DAE5A Crossover MCU
  • Arm Cortex-M7 @ 500MHz
  • On-chip RAM size up to 128 KB shared with CM7 TCM
  • Boot ROM (64 KB)
  • High speed USB, UART, SPI, I2C, SAI, PWM, GPIO, ADC support
• 128 Mb QSPI Flash with XIP support and on-the-fly decryption
• User programmable Button and LED
• Up to 33 multi-function General Purpose IOs (15 can be used as ADC inputs)
• Arm Serial Wire Debug (SWD) port via edge pins
• Flexible power management with various options for easily powering the unit
• Wide input voltage range: 1.8 V to 5.5 V, output 3.3V and up to 2A when Input ≥ 2.3 V
• 3.3V IO Operating Voltage
• Dual-row 40 pins 55.88mm x 20.32mm (2.2" x 0.8") DIP/SMT form factor
• Reversible USB-C connector
• Available with loose or pre-soldered headers
• Shipped with UF2 Bootloader supporting Drag-and-drop programming over USB drive
• Easy to enter Boot ROM Serial Downloader even when the UF2 Bootloader gets corrupted
• Built on open source, supporting Zephyr RTOS, Python, etc

Hardware Diagram

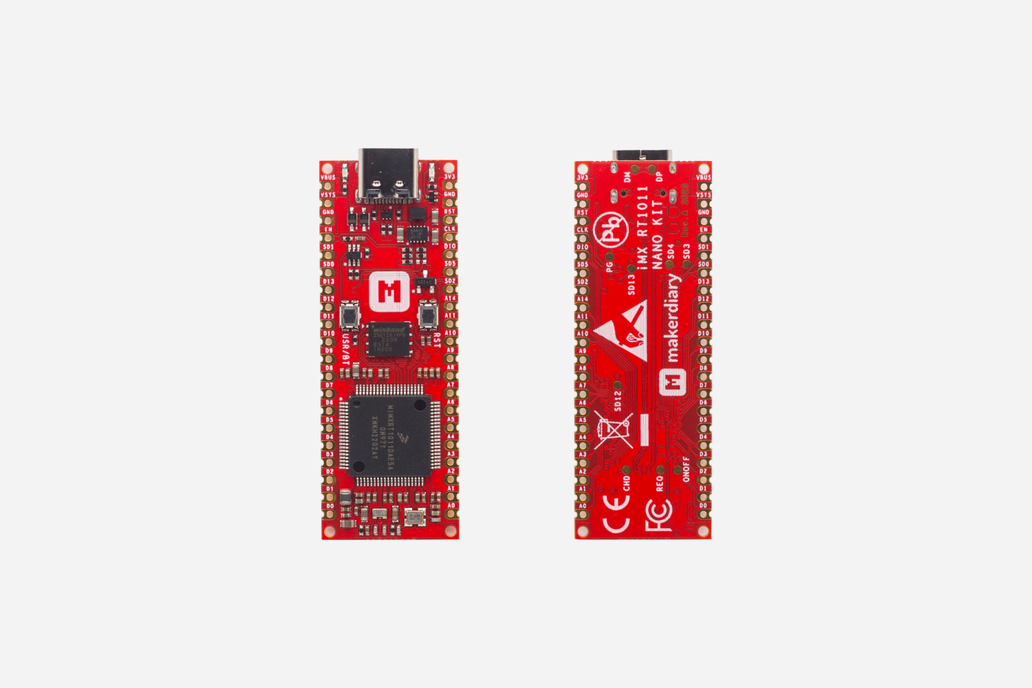

The following figure illustrates the iMX RT1011 Nano Kit hardware diagram. The design is available with loose or pre-soldered pin headers. Download Pinout Diagram (PDF).

What's in the Box

• 1x iMX RT1011 Nano Kit board
• 2x 20 Pin 2.54mm THT Pin Header

Resources

Technical documentation

• iMX RT011 Nano Kit Product Brief
• iMX RT1011 Nano Kit Quick Start Guide
• iMX RT1011 Nano Kit Programming Guide
• Develop with Zephyr RTOS
• Code in Python

Hardware resource

• iMX RT011 Nano Kit Pinout Rev.A
• iMX RT011 Nano Kit Hardware Description
• iMX RT011 Nano Kit Schematic Rev.A
• iMX RT011 Nano Kit 3D Model Rev.A

Regulatory & Compliance

• FCC Supplier's Declaration of Conformity (SDoC)
• EU Declaration of Conformity (DoC)
• RoHS & REACH Declaration of Conformity
