What is it?

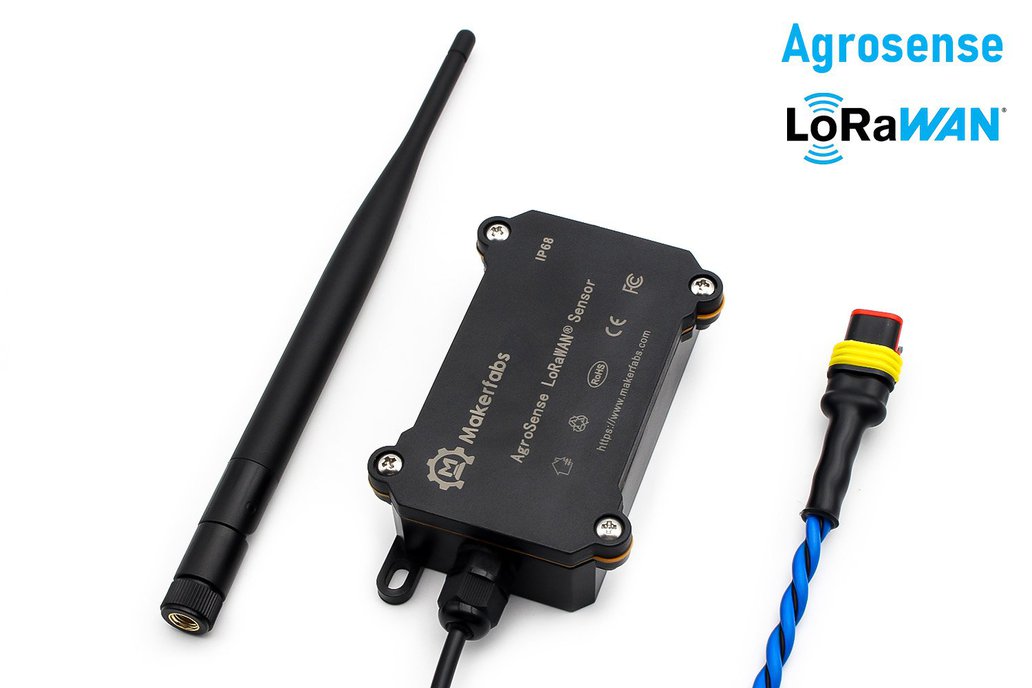

The AgroSense LoRaWAN® None-Position Rope Type Water Leak Sensor detects water/oil leakage/drops for the whole sensor cable, it is sensitivity when there is water drop over the leak cable at any place, it indicates& reports water drop via LoRaWAN® instantly, suitable for applications such as garage/kitchen water leakage detection.

Benefits from LoRaWAN®, which ensures stability and reliability. It is capable of covering a long transmission range while maintaining low power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, design and development for end-users that can work via powering it, and setting the configuration in the cloud server.

This product mainly features:

• Compatible with Worldwide LoRaWAN®1.0.3 Networks, Support the universal frequency bands EU868/ US915;
• Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
• Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
• Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
• Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.

General Spec:

Wireless Parameters

Physical Parameters

Description

AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

• DEV EUI: Unique identification of device，authorized by IEEE；
• APP EUI: Unique identification of application；
• APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；

Part List

• AgroSense_None-Position Rope Type Water Leak Sensor LoRaWAN® *1

Usage

• AgroSense Products Datasheet
• Usage Wiki
• User Manual

For country/ area frequency selecting,please check here: regional Parameter
