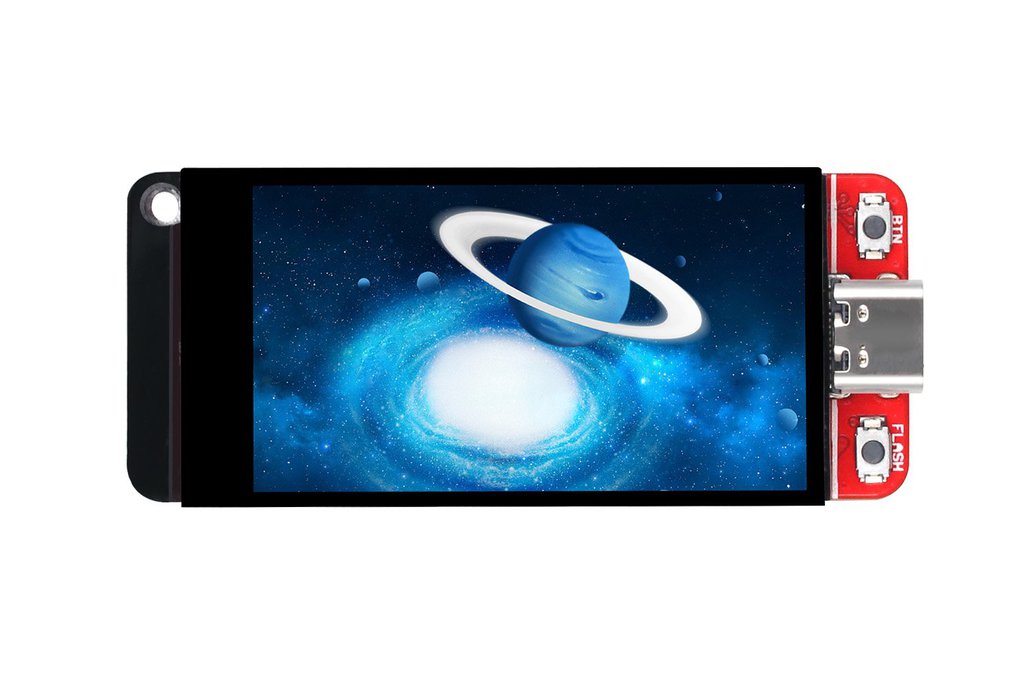

MaTouch 1.9“ TFT Breakout

Name: MaTouch 1.9“ TFT Breakout
SKU: 31433
Price: 21.80 USD
Availability: InStock

This new MaTouch 1.9“ TFT Breakout allows users prototype it more easily with a breadboard.

Designed by Makerfabs in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This new MaTouch 1.9“ TFT Breakout allows users prototype it more easily with a breadboard.

What is it? Makerfabs MaTouch 1.9” has got lots of interests, but we got many feedback that there the ESP32S3 pins should be breakout, for users’ application, so we designed this new board. Compares …

What is it?

Makerfabs MaTouch 1.9” has got lots of interests, but we got many feedback that there the ESP32S3 pins should be breakout, for users’ application, so we designed this new board.

Compares to the old version, there main updates are the GPIO all been breakout, users can prototype it more easily with a breadboard, or use it as a “controller” for other boards by inserting it to other boards. Specs:

Controller: ESP32-S3;
Wireless: WiFi& Bluetooth 5.0;
LCD: 1.9", 320x170 resolution, driver ST7789V2;
LCD interface: 8 bit 8080;
Touch Panel Driver: CST816D;
USB: USB Native, Type-C;
Power Supply: USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery;
Button: Flash button and reset button;
MicroSD: Yes;
Arduino support: Yes;
LVGL support: Yes;
Operation temperature: -40℃ to +85℃;

Why did you make it?

To extend my MaTouch series. MaTouch is Makerfabs' Display with Touch series, based on ESPxx, intends for IOT applications. All products totally open hardware.
