1300 MHz FETProbe, V2

Name: 1300 MHz FETProbe, V2
SKU: 34119
Price: 30.00 USD
Availability: InStock

1.3 GHz active scope probe with FET input, v2

Designed by MakerProbe in Germany








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

WEEE-Reg.-Nr. DE 67105027

1.3 GHz active scope probe with FET input, v2

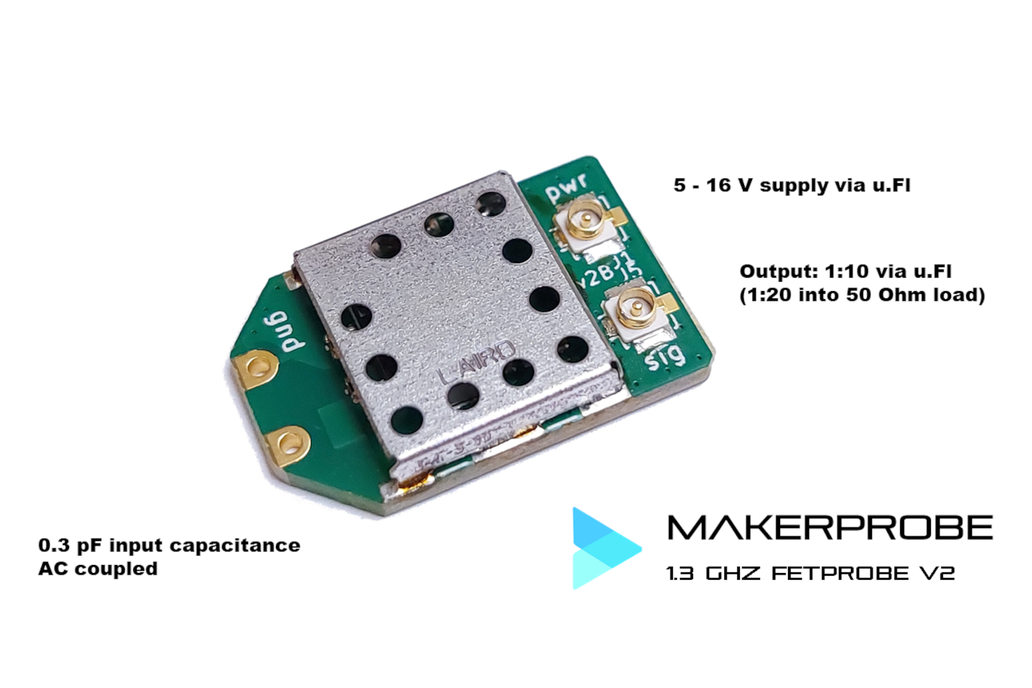

What is it? A 1.3 GHz active scope Probe with FET input and very low input capacitance (about 0.3 pF) AC coupled minimum frequency: 100 kHz attenuation 1:10 (1:20 with 50 Ohm termination) supply …

What is it?

A 1.3 GHz active scope Probe with FET input and very low input capacitance (about 0.3 pF)

AC coupled
minimum frequency: 100 kHz
attenuation 1:10 (1:20 with 50 Ohm termination)
supply with 5V-16V, u.Fl
reverse voltage protection
output through u.Fl
can be soldered directly to the device under test for minimal lead inductance
AC coupled

For powering, see https://www.tindie.com/products/makerprobe/usb-5v-to-sma-dongle/ - also available as an accessory option on this page

This is a nice low-cost addition to your scope accessory arsenal for cases when the stock probes of a cheap oscilloscope just can't do the job.

Usage

The probe is designed to be soldered to the device under test. The wires should be as short as possible (aim for less than 10 mm) to not increase input capacitance. Connect the probe to your test equipment (scope, VNA, whatever) and supply power to the probe (5 - 16 V, 50 mA). The probe as such has 1:10 attenuation, 1:20 with 50 Ohm termination. As it is AC coupled, it will not show any DC signals below 100 kHz or so.
