Bluetooth Spectrum Analyzer

Name: Bluetooth Spectrum Analyzer
SKU: 35994
Price: 66.00 USD
Availability: InStock

Very Fast Bluetooth Spectrum Analyzer driving 3584 Pixel Leds at 120FPS

Designed by The Electronic Engineer in Netherlands

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Very Fast Bluetooth Spectrum Analyzer driving 3584 Pixel Leds at 120FPS

What is it? This is a PCB to build your own copy of my Bluetooth Spectrum Analyzer AL you need to add are some headers, a ESP32 Devkit 1, a I2s Audio board and 14 LED panels Why did you make it? Yeah…

What is it?

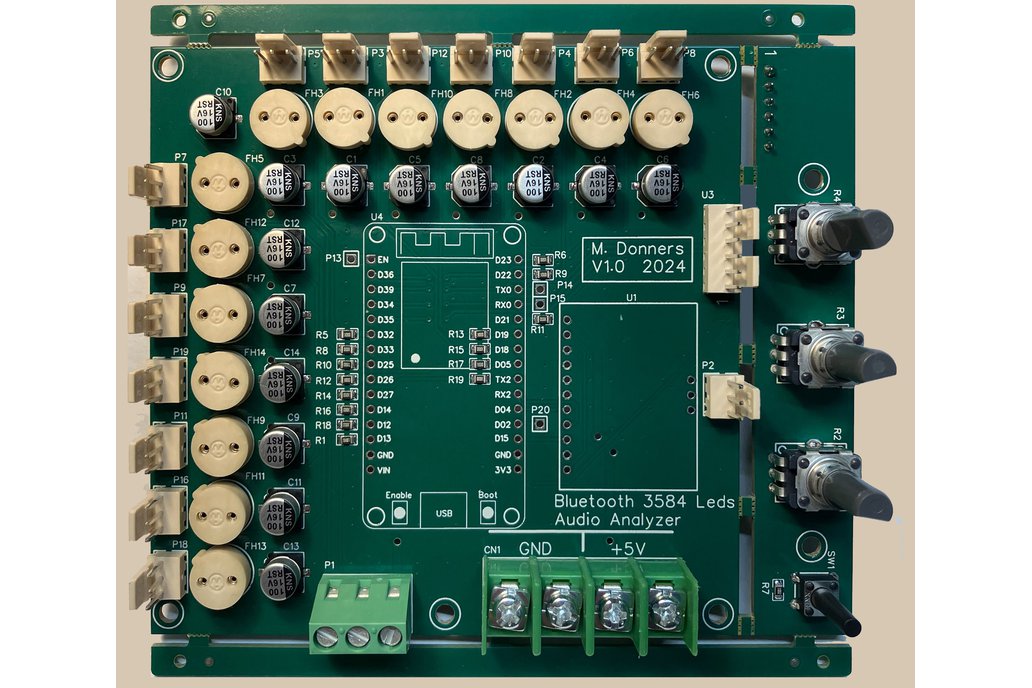

This is a PCB to build your own copy of my Bluetooth Spectrum Analyzer AL you need to add are some headers, a ESP32 Devkit 1, a I2s Audio board and 14 LED panels

Why did you make it?

Yeah, it is another spectrum analyzer. This one is pushing the ESP32 to its limits in terms of RAM. I love making different models of audio analyzers and this one is over the top and easy to build!

What makes it special?

3584 Pixels ( LEDS)
Bluetooth connection for Audio
120 Frame's per second! to that means 3584 leds are refreshed 120 times per second!
Two different patterns to be displayed ( more to follow in future updates )
Cartoon animations will show as overlay.
