*Important:

• We are selling usb dongle to active functional modules in MarkingMate and MM3D software, with the purchased dongle, you can use all the base functional modules

• Only the specific requirements (as we listed below) need to buy additional authorizations

• This dongle is is capable of running all ELOGIC cards (UMC4, PMC2, PMC2e, PMC6) and SCANLAB RTC3/4. However, you must purchase a card module license to use SCANLAB RTC 5/6 and RAYLASE SP-ICE3.

• Please contact us for more information and detailed quotations.

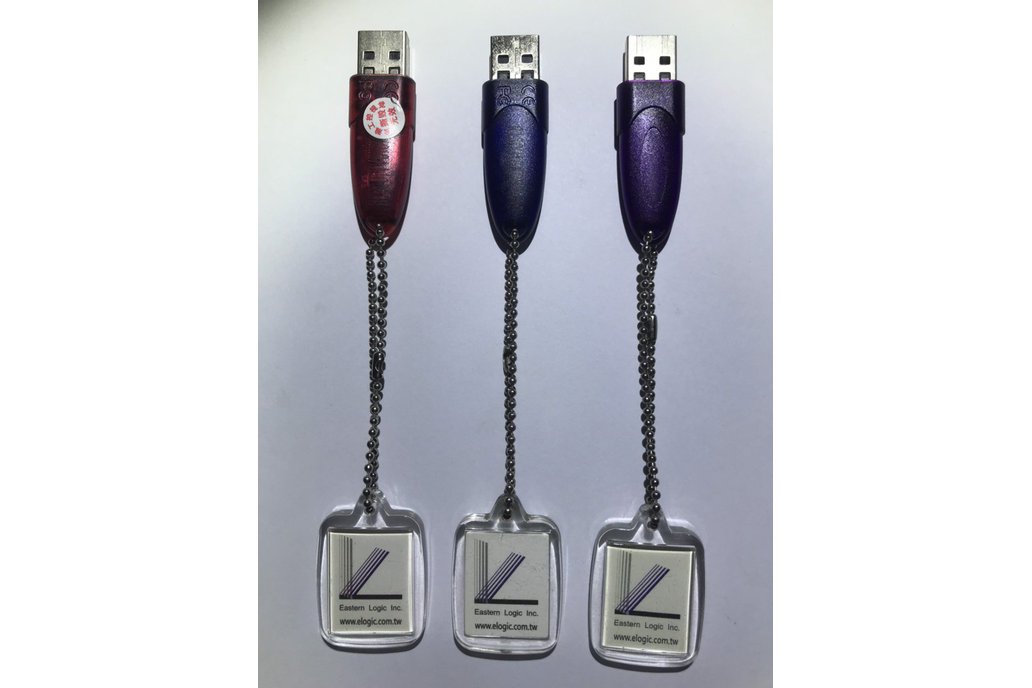

USB Dongle Key for Markingmate and MM3D Software, supports a variety of laser marking controllers, including ELOGIC PMC2, MCx, UMC4, PMC2e, PMC6, EMC6, SCANLAB RTC3/4/5/6, and RAYLASE SP-ICE3. It is capable of controlling almost all types of lasers such as CO2, YAG, Fiber, Green, and UV.

• MarkingMate: A windows-based laser marking software developed by Eastern Logic, designed to be easy and user-friendly. It supports various vector and bitmap graphics and provides library and OCX components for marking solution providers. It can easily mark on both plane and non-plane surfaces.
• MM3D: Integrates the control of the third galvo axis (focusing axis) to assist users in marking on curved objects. The marking process can be completed on a curved surface by placing the workpiece under the galvo at the corresponding position after importing the 3D model into MM3D software and pasting the 2D pattern to be marked on the appropriate position of the model.
  • Supports STL, STEP, and IGS 3D models.
  • Allows drawing in 2D graphics.
  • Includes several frequently used models.
  • Supports importing 3D DXF as a marking path.
  • Features graphic coating or projection mapping to curved surfaces.
  • Provides real-time preview – what you see is what you get.
  • Offers automated process control.
  • Supports X, Y, or Z axis motion.
  • In addition to importing 3D models, MM3D also offers various built-in models and supports 3D DXF as a 3D marking path.

There are twelve languages available, including English, Simplified Chinese, German, Japanese, Turkish, Korean, Portuguese, Polish, Vietnamese, French, Italian, and Traditional Chinese. Furthermore, users can customize various language versions by simply modifying a text file

Additional module authorizations: (Purchase separately, please contact us for detail and quotations)

1. Program Library (OCX): This authorization is required for secondary development using OCX. Without this authorization, a warning window will pop up: MarkLibrary3 cannot find the protection lock!
2. Rotation Axis: cylindrical surface processing, rotation engraving related functions.
3. XY Slide: Use the XY axis and Z axis to control related functions.
4. Flying Carving (MOF): The workpiece moves on the assembly line during processing, which is the compensation position of flying carving.
5. Split Image: If the large image processing will exceed the working range of the lens, you can use the split image authorization function to divide the large image into several partitions and match the platform for processing.
6. Lens Calibration: Call MMLens.ocx lens calibration related functions in OCX condition.
7. Multi-head/System: One software can display multiple working ranges/softwares at the same time.
8. Computer Vision Positioning (CVP): The software provides a vision system to solve time-consuming correction work and dynamic target grabbing, making it easy to position and mark.
9. Manual Partitioning: advanced function allows users to define the partition engraving order and partition size.
10. 3D (2.5D) Processing: Focus on axis hardware control and 2.5D processing related functions.
11. Power Correction: Used with a power meter to solve the related functions of laser energy attenuation and unstable output power.
12. Cutting Module: Through layer settings, while keeping the galvanometer at the zero position, it can move the slide table to cut off the necessary or unnecessary parts from the original workpiece
13. Large Table: Supports front focusing type 3D engraving head (without f-theta lens) for large table focus correction.
14. Four Laser Heads
15. Editing Only: Provides simple software editing operations and functions related to saving EZM files, so the name implies that the light will be restricted.
16. Rotating Axis (Continuous Mode): The rotating axis can continue to allow the galvanometer to perform marking operations without stopping the rotation.
17. Deep Sculpting: Cut the content layer by layer and move the effect up from the material, and finally sculpt the finished product that is the same as the imported model.
18. Model Outer Frame: Curve objects can be generated according to the outer frame of the model.
19. Export CNC File: CNC-specific G-Code path files and DXF files can be output through the software driver.
20. Split DXF File: Call the MMDXFSplitter.ocx function related to splitting DXF in OCX state.
21. Image Vectorization: You can convert bitmap images into vector images composed of circles.
22. Output Parameter File: Call ExportObjectParamFile in the DLL state to output specific format parameters.
23. Vericode: Provides the use of Vericode barcodes
24. Grid Point Method for Large Table Correction: The Z-axis quadrant coordinate system is added to the grid point method correction page.
25. Rotation Axis Z Compensation: The software provides the ability to import contour files for 3D processing actions.
26. Cloud Marking (Standalone & Cloud Versions): A process system for file selection and marking by sending photos to a stand-alone network or managing files with the cloud through wireless networks
27. Height Measuring Function: With the height measuring device, through the Z-axis lifting and lowering, workpieces of different heights can be quickly adjusted to the focal length during processing.
28. EL-XML File: can output XML files in a specific format.
29. 3DP Model Scaffolding Function: Provides the "Scaffolding Toolbar" function, allowing users to generate model scaffolding for imported models.
30. Library UI Function: Call MMUI.ocx user interface related functions in OCX state.
31. CVP Image Stitching: Splice the small range seen by coaxial vision into a complete picture.
32. Advanced Flying Eagle (AMOF): Controls the galvanometer and axis control platform to move synchronously during laser processing.
33. 3D Scanning Module: Used with an external 3D molding machine to generate 3D model files in real time.
34. Dotted Line Function: A related function that solves the problem of acceleration and deceleration of multi-line marking galvanometers.
35. Drilling Module: Use laser technology to drill holes (micro holes); use laser light to illuminate a point (surface) for photothermal ablation and photochemical ablation... to perform drilling. In order to achieve the processing method of opening holes.
36. Welding Module: Laser welding is a method that uses a focused laser beam as the energy source to bombard the welding parts with the heat generated.
37. SCANACS Linkage Module
38. RTC6 and RTC5 Modules
39. SPICE3 Driver Module
40. Multi-card Image Offset Rotation
41. Advanced Flying Eagle Advanced Module (AMOF+): Through simultaneous control of the laser galvanometer and the XY platform, it improves the laser marking ability during processing.
42. Spiral Hole Module: When using 2.5D engraving, the height change of the Z-axis changes continuously.
43. ELCVLib Module: In combination with (7. Computer vision positioning), Xingcheng's independently developed visual driver can be used.
44. Advanced Welding Module: Advanced welding function allows users to define multiple sets of settings.
45. Computer Vision Lite (CVP-Lite)
46. Platform Focal Length Compensation
47. Two-dimensional Platform Correction: EL-CVP2 software can be used to integrate the horizontal and vertical correction functions of the engraving head and the platform.
48. Modification Function
49. AMOF Debugging Function: With "Advanced Flying Eagle high-end module", feasibility analysis can be carried out before engraving
50. Bold Line Segment: Change graphics through software functions to achieve the effect.
51. Scan Head Analysis Module: The professional scan head analysis software ELScannerProperty can clarify whether the error between the SL2-100 feedback position and the command position is too large.
52. Processing Delay Analysis
53. Single Head Dual Pulse Width Laser Source
54. EMC6-Lite
55. Flying Punch Module
56. Constant Speed Function
57. VPSO (Virtual Position Synchronous Output): Refer to the dynamic parameters of the galvanometer motor to control the laser light output by position, so that the distance between each laser point is the same, improving the marking quality.
58. ELH-SCAN: Engraving head that cooperates with special communication protocol, required authorization.
59. Quick Drilling Module
60. ME-LINK Module: equipped with the 20-bit closed-loop engraving head communication protocol jointly developed by Anshan Precision and Xingcheng Technology.
61. SL2 Module: SL2-100 protocol is a communication specification between high-end 20-bit digital engraving heads. (Subject to SCANLAB’s consent)

For module demostrations, please prefer to Elogic Youtube: https://www.youtube.com/watch?v=RQEm0gfFa2Q&list=PL0a5PbATCw6cwJ4oI1CIxoN3tVluSXLcG

Note:

• The Active Key USB is only valid for supported laser machine control cards.
• No returns or exchanges after the USB key has been shipped.

Boost your productivity with our Active Key USB today! Contact us if you need more information or assistance.
