High Efficiency Cree-LED Lighting Module Kit

Name: High Efficiency Cree-LED Lighting Module Kit
SKU: 11408
Price: 10.00 USD
Availability: InStock

Uses 48 high efficiency Cree XHBAWT-00-0000-00000LXE5 LEDs at 152lm/W for 4000K bright white light and a 0.6mm thick PCB for constant 12V

Designed by matrixstorm in Germany

High Efficiency Cree-LED Lighting Module Kit 1

High Efficiency Cree-LED Lighting Module Kit 2

High Efficiency Cree-LED Lighting Module Kit 3

High Efficiency Cree-LED Lighting Module Kit 4

High Efficiency Cree-LED Lighting Module Kit 5

High Efficiency Cree-LED Lighting Module Kit 6

High Efficiency Cree-LED Lighting Module Kit 7

High Efficiency Cree-LED Lighting Module Kit 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Uses 48 high efficiency Cree XHBAWT-00-0000-00000LXE5 LEDs at 152lm/W for 4000K bright white light and a 0.6mm thick PCB for constant 12V

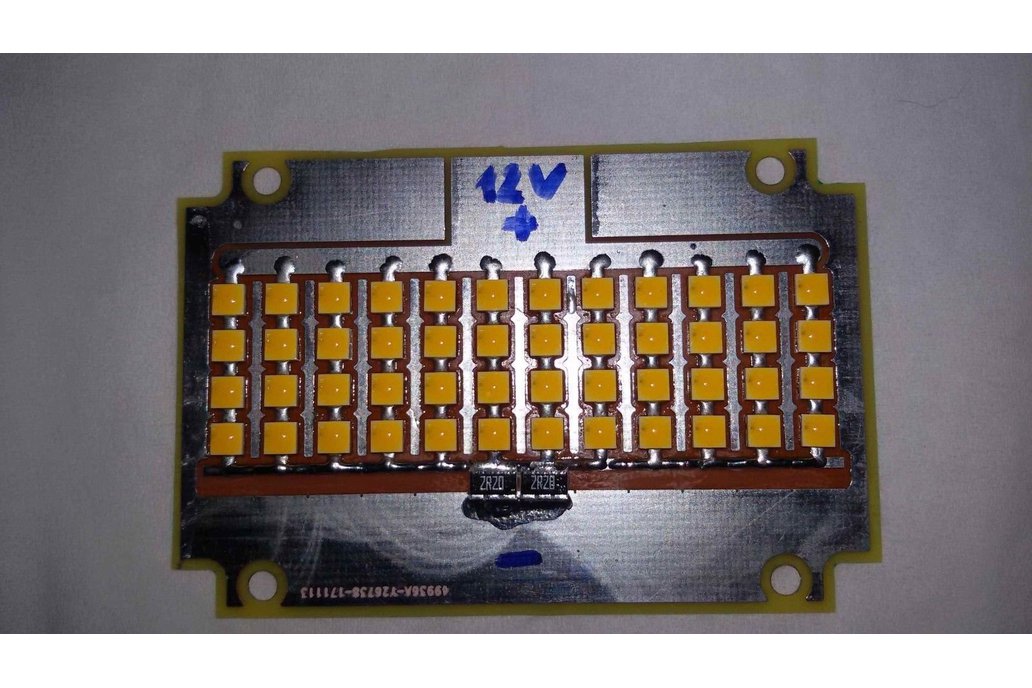

This is a kit for a DIY high efficiency LED lighting Its color temperature is a pleasant 4000K, which ranges from neutral white to warm white. The printed circuit board has a thickness of only 0.6mm …

This is a kit for a DIY high efficiency LED lighting

Its color temperature is a pleasant 4000K, which ranges from neutral white to warm white.

The printed circuit board has a thickness of only 0.6mm for thermal reasons and is metallised on both sides. By default, the rear side is not electrically connected, but the Vcc connection is not recessed for any contact holes.

The module is designed for 12V and throttled on delivery to 75% of the luminosity (2x 2.2Ohm) to operate without extra heat sink can. At 75% luminosity and 50mA diode current (12 rows each 50mA = 600mA), just under 1000 lumens (0.75 x 26.8lm x 48 = 964.8).

The LEDs themselves can operate up to 175% of the nominal luminosity. Already with the coolest cooling can be increased to 80mA diode current (resistance to 50mOhm) and thus to 125% luminosity (33.5lm per LED, or 1608lm total).

The product website includes datasheets and lots of additional information is: http://www.cree.com/led-components/products/xlamp-leds-discrete/xlamp-xh-b

The kit contains:

1x PCB (KEMO G026 fit - 0.6mm thick)
48x Cree XHBAWT-00-0000-00000LXE5
2x 2512 SMD 2.2 Ohm or alternatively 1x 2512 SMD 0.05 Ohm

I am happy to answer questions or to tell additional details. (But because I sell as a private person this is not mandatory.) Furthermore, I assume no warranty, exchange, liability or the like. Pictures are similar.
