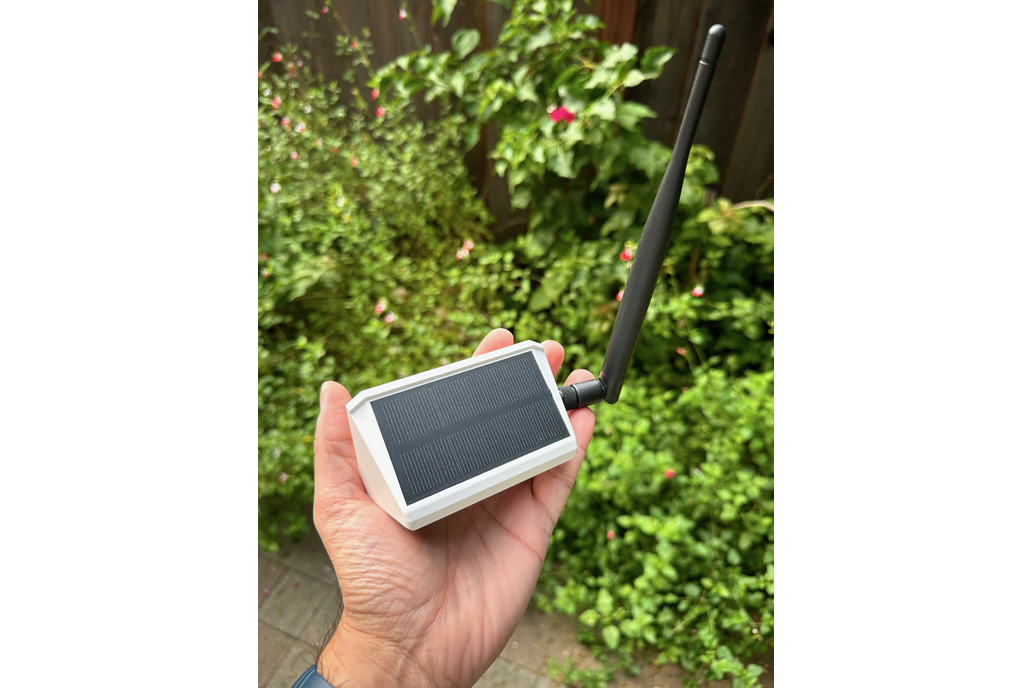

Complete mini solar node ready to use! Preinstalled with the latest version of Meshtasic. It uses a small solar panel to charge a high-capacity 18650 battery. This is a low-power consumption node running a RAK19007 with a LoRa 800-915Mhz module. It is perfect to keep at home as a dedicated router or client. You are able to receive and send messages to other nodes using the official Meshtastic app via Bluetooh for iOS and Android.

All Features:

• ABS plastic molded case
• Base Microcontroller: WisBlock Base (RAK19007)
• Lora Module: WisBlock Core (RAK4631) contains RAK4630 LoRa with Bluetooth module. US915 915 MHz version/AU915 compatible also- boards can be used in EU but will require a separate 868 Mhz antenna
• Antennas: 915MHz LoRa Antenna Indoor 3dBi Gain Omni SMA Male + IPEX Cable . Flat bluetooth antenna
• Battery: 3000mAh Samsung 30Q Rechargeable Lithium Polymer 18650 Battery
• Solar Panels: 0.75W IP65 waterproof
• Case: ABS molded plastic enclosure. Includes a set of wall/wood screws with anchors, and optional mounting tape. Size 3.86” x 2.28” x 2.17” (98mm x 57.9mm x 55mm)

QA

• Q: Can I send and receive messages?
  • A: Yes, using the Meshtastic official app you can send and receive messages from public and private channels.
• Q: Is the exterior antenna waterproof?
  • A: The antenna and the enclosure is not airtight but it can withstand long term outdoor exposure. For rain or snow waterproofing with polymer thermoplastic (hot glue) or epoxy is recommended.
• Q: Can I upgrade the antenna?
  • Absolutely, you can can use a bigger antenna using the SMA male connector.
• Q: How to connect with bluetooth?
  • A: Open the Meshtastic app for iOs or Android and tap on your node name. Default Bluetooth PIN is 123456
