Drone frame components are made with an innovative process that enables production of environmentally friendly composite material from natural fibers and PLA. Drone frame is one of the first attempts at providing an alternative for petroleum based composites (epoxy, carbon fiber) and other energy consuming reinforcements like glass fiber.

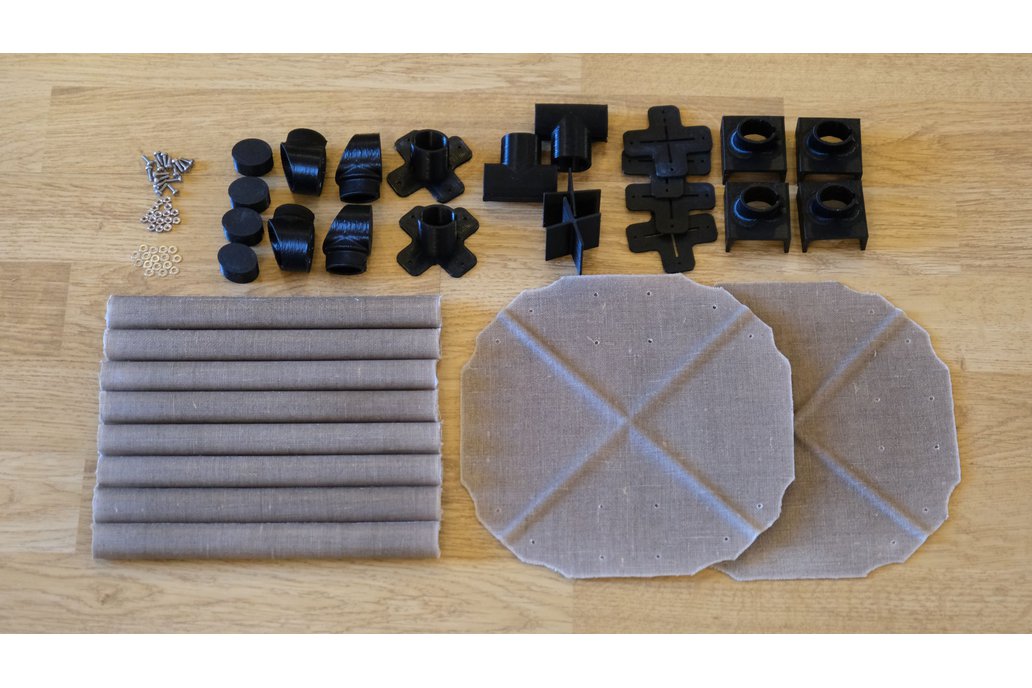

Frame is made up of 3D printed connections, composite parts and metal hardware. If you have access to 3D printer and 2,5mm bolts and nuts you can purchase only the composite parts.

Specifications:

Motor wheel base: 650mm diagonally

Motor mounts suitable for motors: 2205, 2212, 2206, 5010

Fiber composite weight: 187g

3D printed components weight: 142g

Assembled frame: 350g (with M2.5x8mm stainless hardware)

Joints between composite bars and 3D printed components (that do not have predrilled holes) should be glued (super glue, minute epoxy or more environmentally friendly alternatives). We are still working on a reliable bio-degradable suggestion/solution for gluing components.

Due to the good machining properties additional holes can be drilled to the drone frame to fit different accessories (like cameras, battery, ECU holders,…).

Part of the manufacturing is still done by hand, so some imperfections can be expected. Seller takes no responsibility for the use, longevity and assembly of the final drone (related to the drone, pilot or third party).
