Edison

Intel® Atom™ system-on-a-chip (SoC) based on leading-edge 22 nm Silvermont microarchitecture including a dual-core CPU and single core microcontroller (MCU) Integrated Wi-Fi, Bluetooth LE, memory, and storage Support for more than 30 industry-standard I/O interfaces via a 70-pin connector Support for Yocto Linux, Arduino, Python, Node.js, and Wolfram Open source community software tools enabling ease of adoption and inspiring third-party app developers to build apps for consumers. EDI1.SPON.AL.S (System-On-Modules - SOM Edison Module IoT Internal Antenna)

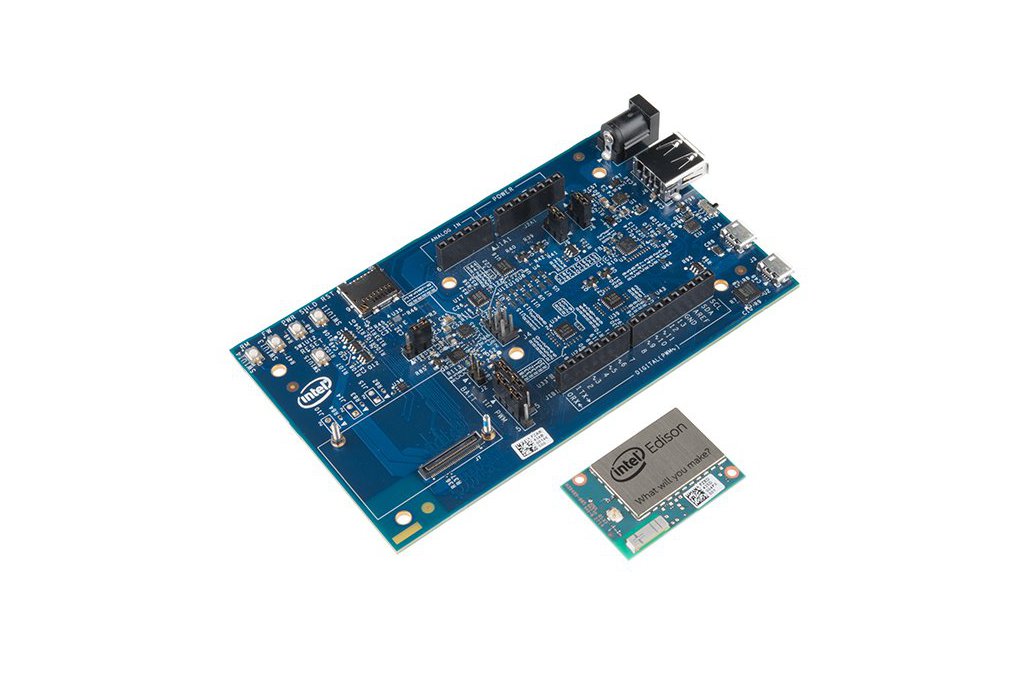

Arduino Breakout

• Compatible with Arduino Uno (except only 4 PWM instead of 6 PWM).
• 20 digital input/output pins including 4 pins as PWM outputs
• 6 analog inputs
• 1 UART (RX/TX)
• 1 I2C
• 1 ICSP 6-pin header (SPI)
• Micro USB device connector OR (via mechanical switch) dedicated standard size USB host Type-A connector
• Micro USB device (connected to UART)
• SD Card connector
• DC power jack (7V – 15V DC input @ 500mA)
