18 headers Power distribution board for Eurorack Modular Synths
Designed by Midnight Gadgets in Germany
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
A Power distribution board for Eurorack modular synthesizer cases. They arrive mounted and ready to use with 8 screw spacers (M3, 4mm) The WAGO terminal blocks accept 24 to 16 AWG wires (*0.2 … 1.5 m…

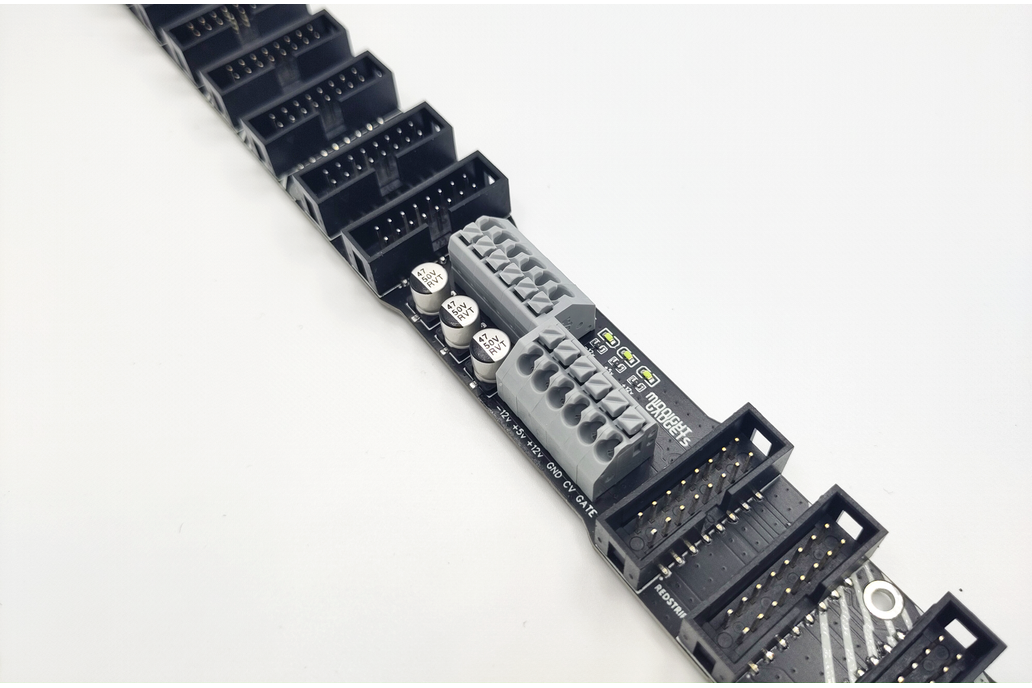

Read More…A Power distribution board for Eurorack modular synthesizer cases.
They arrive mounted and ready to use with 8 screw spacers (M3, 4mm)
The WAGO terminal blocks accept 24 to 16 AWG wires (*0.2 … 1.5 mm²)
There is a dedicated output for GATE and CV, so that the internal communication is made possible between every module that use those functions.
The 3 leds on the boards (+12V, +5v, -12V) show if power is missing on each rail. They won't light up if something is uncorrectly wired.
The 18 Headers have physical reverse polarity protection, hence only the correct insertion is possible.
