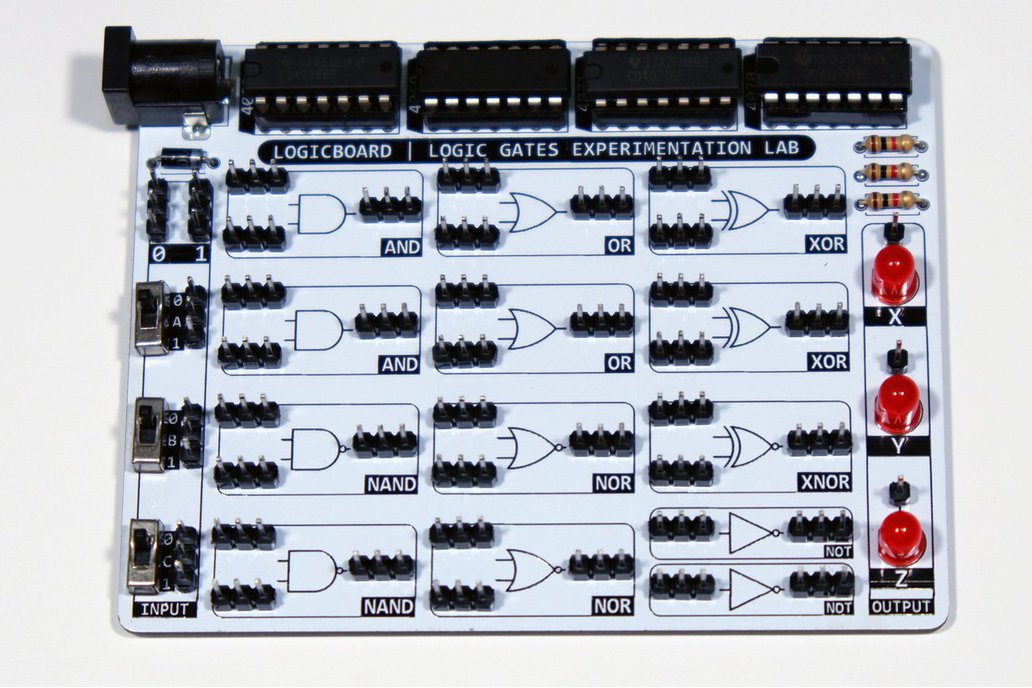

Introducing LogicBoard, the ultimate experimentation tool for anyone interested in learning about logic gates and digital electronics! With its 3 inputs, multiple logic gates, and 3 output LEDs, LogicBoard is the perfect platform to experiment with and understand the principles of digital logic.

Logic gates are basic structures of computers and also basic logic behind any programming language. Understanding logic gates is essential for building a strong base for programming and digital circuits.

Learning logic gates is also quite useful for microcontroller coding like Arduino (C++) or MicroPython. LogicBoard allows experimenting logic gate combinations and makes building complex logic blocks much easier. It's the absolute first step for coding.

Designed with both functionality and convenience in mind, LogicBoard is compact, easy to use, and comes fully assembled with 20 female-female jumper cables for connection. It has the same barrel jack connector with Arduino Uno, so you can power it easily. Whether you're a seasoned electronics enthusiast or a complete beginner, LogicBoard is the perfect tool to help you explore the fascinating world of digital logic.

With LogicBoard, you can easily explore the principles of AND, OR, NOT, NAND, NOR, and XOR gates. The 3 input ports allow you to connect different input sources, such as switches, sensors, or other digital devices. The 3 output LEDs give you a visual indication of the output of the logic gates.

LogicBoard is perfect for students, educators, hobbyists, and anyone who wants to learn about digital electronics in a hands-on way. Use it to design and test your own circuits, or use it to demonstrate digital logic principles in the classroom.

Get your hands on LogicBoard today and start exploring the fascinating world of digital electronics!

Note: Power adapter is not included.
