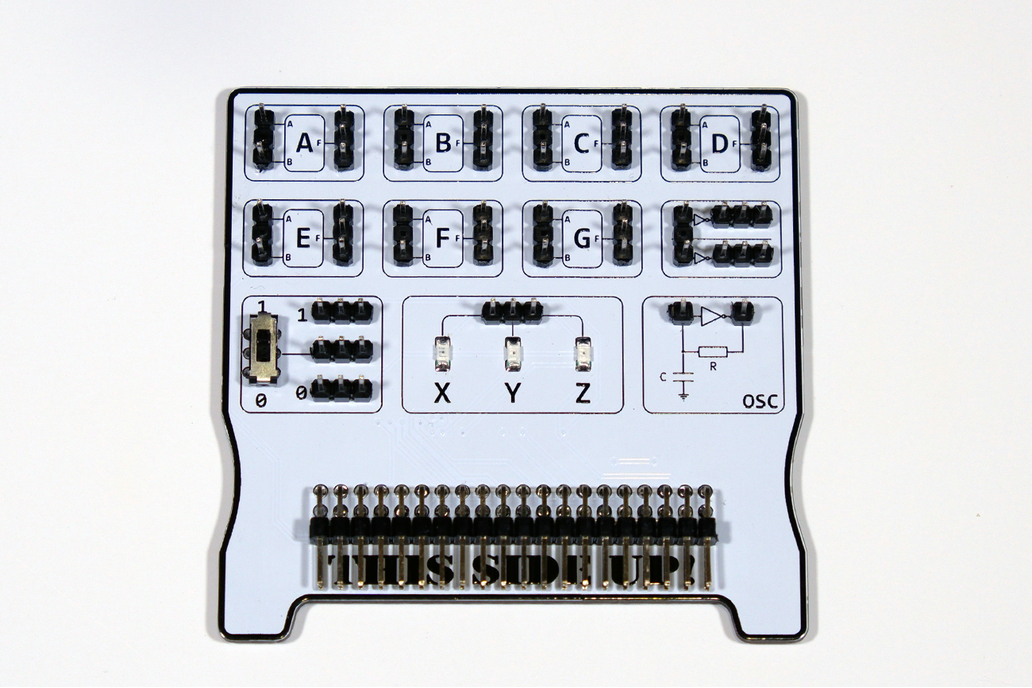

LogicHub Dock Rev.1 is a programmable logic gate experimentation board designed to be used with the METE HOCA Akana R1. The LogicHub Dock is versatile and has been designed as an ideal tool for educational institutions, helping students better understand logic gates and digital electronics.

The LogicHub Dock is engineered to work seamlessly with the Akana R1 board. Featuring a user-friendly interface, the Dock is easy to attach and detach from the Akana R1.

The board includes a total of 9 logic gates, with 7 of them being easily programmable via the Akana R1's display and buttons. This allows users to switch between AND, OR, NAND, NOR, XOR, XNOR, NOT, and BUFFER gates.

In addition, the board is equipped with a switch for selecting 0-1 inputs, fixed 0 and 1 inputs, and three LEDs to display the project outputs. The LogicHub Dock also features an RC circuit (OSC) that, when combined with NOT gates, can be used to create a simple oscillator circuit. This oscillator circuit allows for the exploration of different applications of logic gates.

All components on the LogicHub Dock are designed to be protected against incorrect connections or short circuits.

With the LogicHub Dock, you can unleash your creativity and push the boundaries in your digital electronics projects!
