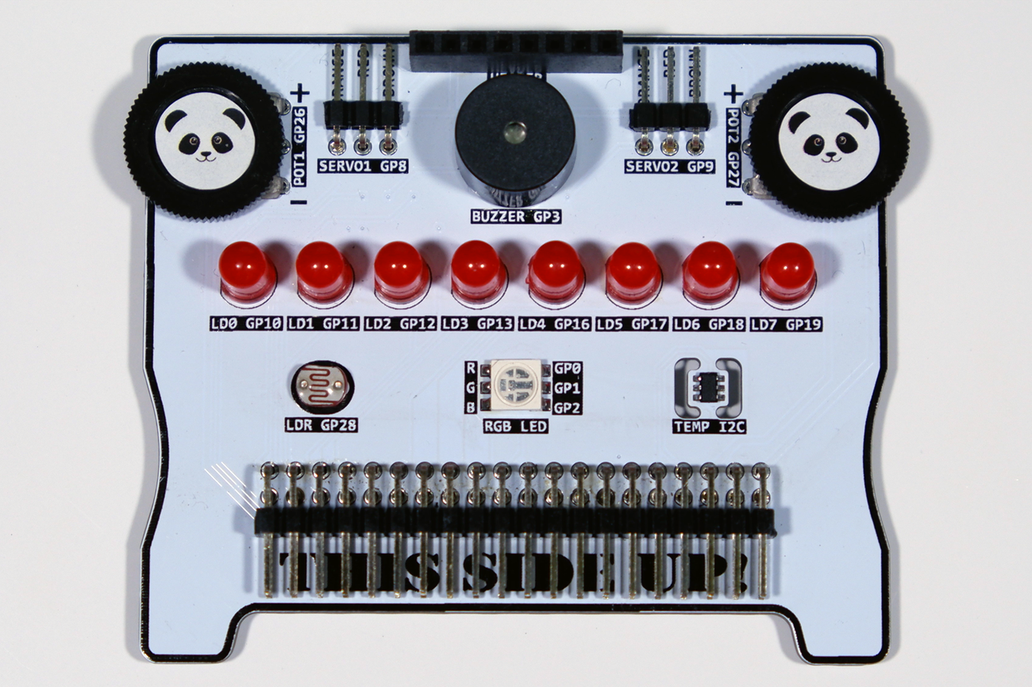

Panda EDU Dock Rev.1 is an educational board designed to be used with the METE HOCA Akana R1, aiming to provide an experience of basic electronic components considered essential for starting STEM education and producing codes through hands-on experimentation.

The dock features 8 red 5mm LEDs and an RGB LED that can mix three primary colors to achieve the desired hue. This allows users to create light games and learn the intricacies of coding flow.

The board includes two potentiometers that enable input of analog values to the Akana R1 and an LDR light sensor that measures ambient light levels. This allows users to experience utilizing analog inputs and create projects based on environmental light conditions.

Additionally, the dock is equipped with a PCT2075 high-precision I2C temperature sensor and a piezo buzzer capable of producing sound at desired frequencies. This makes it possible to develop temperature-sensitive projects and generate alert sounds when necessary.

In addition to the components on the Panda EDU Dock Rev.1, there are two micro servo connections and an 8-pin expansion connection for additional components. The expansion connection has all the necessary pins for connecting external sensors and modules.

All components on the dock are compatible with the RP2040 microcontroller on which the Akana R1 is based, and they operate at a 3.3 Volt logic level.
