Product Description

**

Micetek MSE-101 Serial Emulator is a powerful and user-friendly packet generator for UART, I2C, and SPI protocols.

MSE connects to the host computer and control software via a USB interface, while the 10x2 pin connector allows for interfacing with various protocols and GPIOs.

MSE also supports engineers in product development on embedded systems platforms, as well as testing of modules or embedded systems during production.

Feature and function

• UART control, 400~115200 Baud Rate, control Stop bit, Parity

• I2C control, master/slave mode, set I 2 C pull up, read and write register, 7/10Bit address, etc., 7/10Bit address, Slave address scanning

• SPI control, master mode, 2k~20.8MHz, Control polarity, phase, MSB/LSB, Data Bits

• PWM, Output/Input, 10~100kHz, Control of duty cycle, output inversion and double Slope (Phase Correct), Input frequency and duty cycle detection

• ADC, 8-Bit ADC (1k~100k continuous), 12-Bit ADC (one shot)

• GPIO, 12 Pins in total, 12 Pins Output and input, 2 Pins Open drain, 4 Pins Pull up

• Power supply: 1.8V ~ 5V, GPIO voltage is synchronized with VCC voltage. Not need to use level shifter to convert voltage, 2 Pins VCC/4 Pins GND

• Basic version: Simultaneous use of different protocol interfaces, transaction logs archiving and comparison, terminal mode, interactive help window.

• Professional version: Same as the above, read comparison, batch mode.

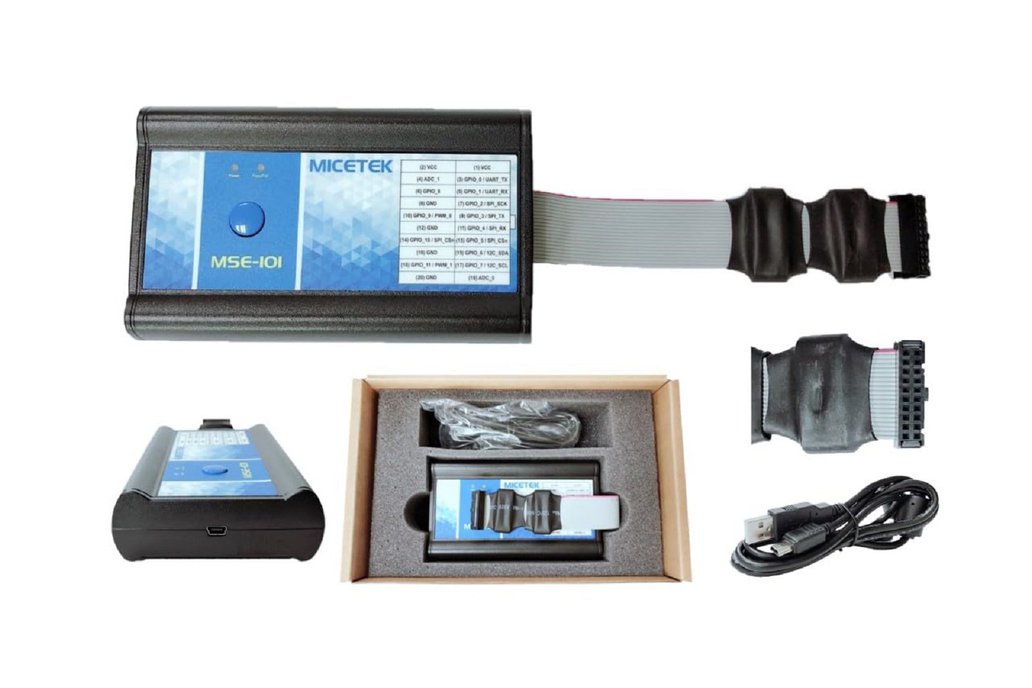

**What's in the box****

MSE-101, 1pc, USB A to mini B cable, 1 pc
