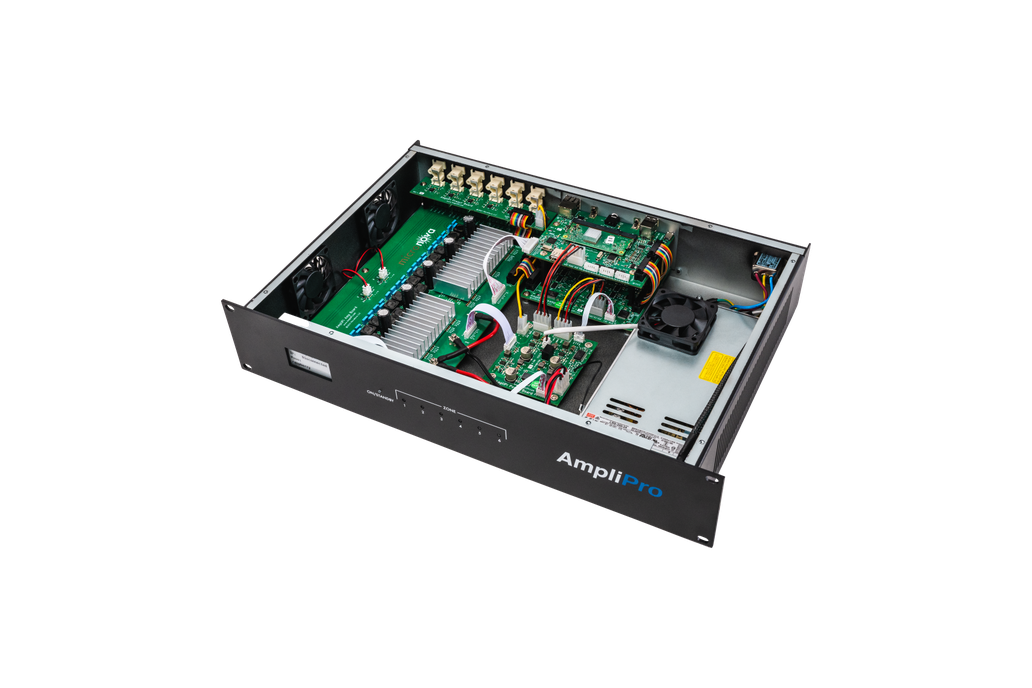

AmpliPro™ is a multi-zone audio controller designed for whole home audio systems.

This system can stream audio from any device with the app and amplify it to speakers.

AmpliPro can play four simultaneous stereo audio streams to one or many zones. The system is a breeze to control using the app or an LCD wall displays.

The AmpliPro is expandable to 36 zones using the AmpliPro Zone Expanders.

The system is open source, check out our GitHub page! Check out our community page here.

We integrate with a wide range of third-party hardware and software, including Home Assistant. Check out our blogs here for more info!

Specifications

Streaming Sources
    AirPlay™ 1 & 2
    Pandora®
    Spotify Connect™
    DLNA
    Internet Radio
    FM Radio*
    Lyrion Media Server
    Bluetooth*
    Coming soon: TIDAL

Control Interfaces
    Mobile-friendly web interface
    Apple & Android Apps
    REST API
    Wall Panel (Sold Separately)

Dimensions
    2U 19” rackmount with 315MM depth

Connectivity:
    100Mbps Ethernet
    2x USB 2.0 external
    1x USB 2.0 internal
    1x service port

Power Input:
    90~132VAC or 180~264VAC (Must use switch on power supply to switch voltage input range).

Power Consumption:
    <10W Idle
    391W Max Continuous
    782W Peak

Speaker Power:
    55 W per channel at 4Ω, <0.1% THD+N @ 1kHz
    32 W per channel at 8Ω, <0.1% THD+N @ 1 kHz
    26 W per channel with all channels driven.

Speaker Impedance:
    4 to 8Ω

Stereo Zones:
    6 (per controller)

Audio Input:
    4 RCA Line in
    3.5mm AUX Input

Digital Channels:
    32-bit 384kHz (channel 1), 16-bit 48kHz (channels 2-4)

Full manual is available here.
