ZigUSB C6 is updated version of original ZigUSB device which was presented earlier.

ZigUSB was developed as a device that allows you to control and monitor the power of a device connected via USB.

Using this device, you can remotely control the power of the USB port to turn on or off the connected device. And also monitor the current voltage and current. And it's not a bad Zigbee network router. Also C6 version supports OTA firmware updates, so that you can receive software updates.

Frequent use cases: converting a "stupid" USB lamp into a "smart" one; connecting modems / sticks / adapters, which sometimes require a power reset; monitoring the current consumption of any connected device.

Possibilities:
- Power on/off by push button and via Zigbee network.
- Automatic restart loop of the connected device with a single Zigbee command.
- Monitoring of voltage and current supplied to the connected device, INA219 chip.
- For power management, a AP22804 power switch chip is used.
- WT0132C6-S5 (ESP32 C6) ​​was used as the Zigbee chip, which allows it to be used in remote places, and at the same time act as a good router for other devices.
- USB data transfer is available. This may be needed when connecting a USB modem to a router that does not know how to manage USB power, and the modem may need to be rebooted.

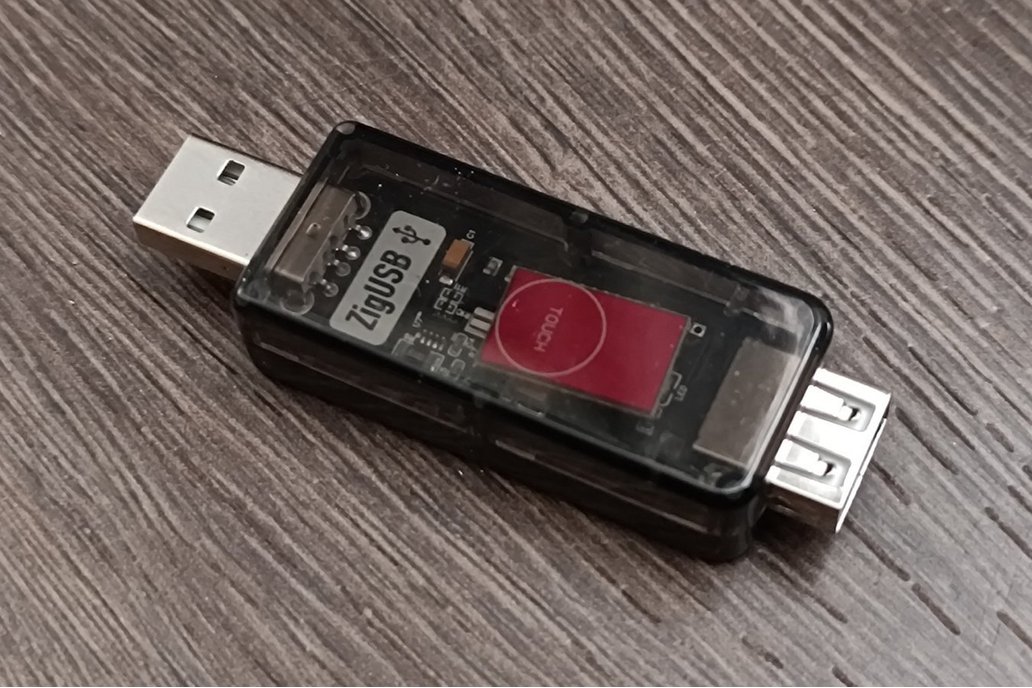

- Custom AK-N-12 case included.

• Firmware: Open source
• Communication protocol: Zigbee
• Support: zigbee2mqtt and others systems
• Operating Temperature: 0 to 50°C
• Power supply: USB-A, 5V
• Module: WT0132C6-S5 (ESP32 C6)
• Antenna: PCB (built-in) or patch antenna (inside case)
• Output channels: 1 channel USB, 5V up 3.0 A
• Project author: xyzroe
