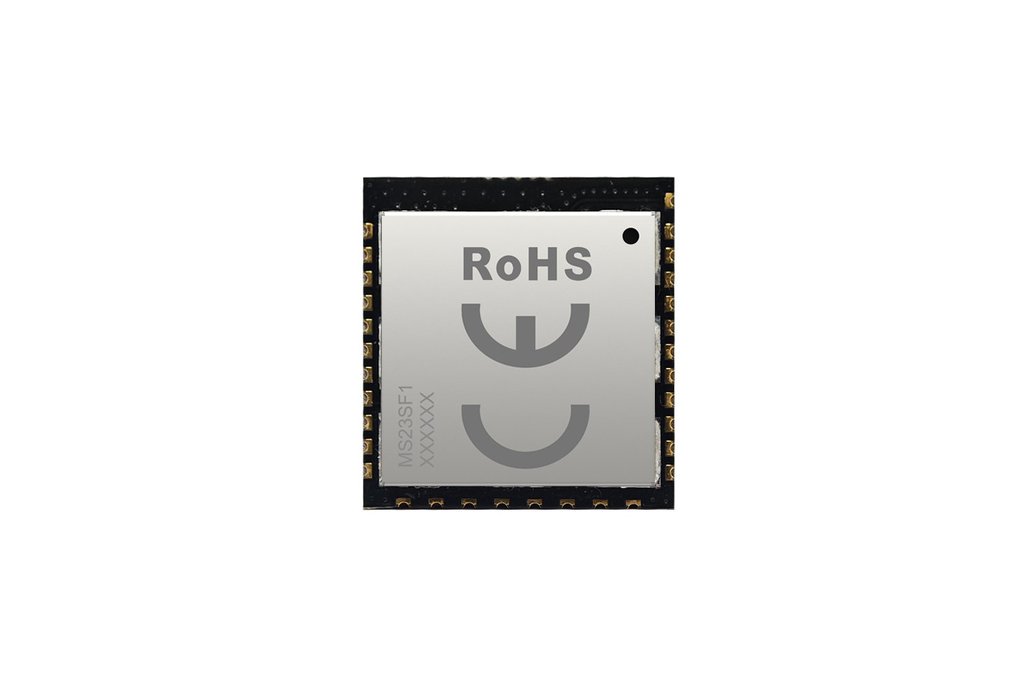

MS23SF1 Module is selected from ST LoRaWAN STM32WLE5CC, Wireless Half duplex transceiver chips, which supports global frequency ISM. It is a typical LoRa®WAN transceiver module, that supports multiple interfaces. The current in receive mode is only 4.2mA. It can achieve transmission power up to +20.5dBm with higher reception sensitivity, and down to -146dBm. compliance with the physical layer requirements of the LoRaWAN® standard specification, and support for LoRa® P2P(points-to-point ).Supporting customers in the rapid set-up of their private, long-range LoRa® networks.

• Small dimension, built-in 48MHz Arm Cortex-M4
• Programmable bit rate, 64KB internal RAM, 256KB Flash
• Transmission Range up to 5KM
• Multi-IO portsupport GPIO24
• Tx Power maximum up to +20.5dBm, RSSI -146dBm
