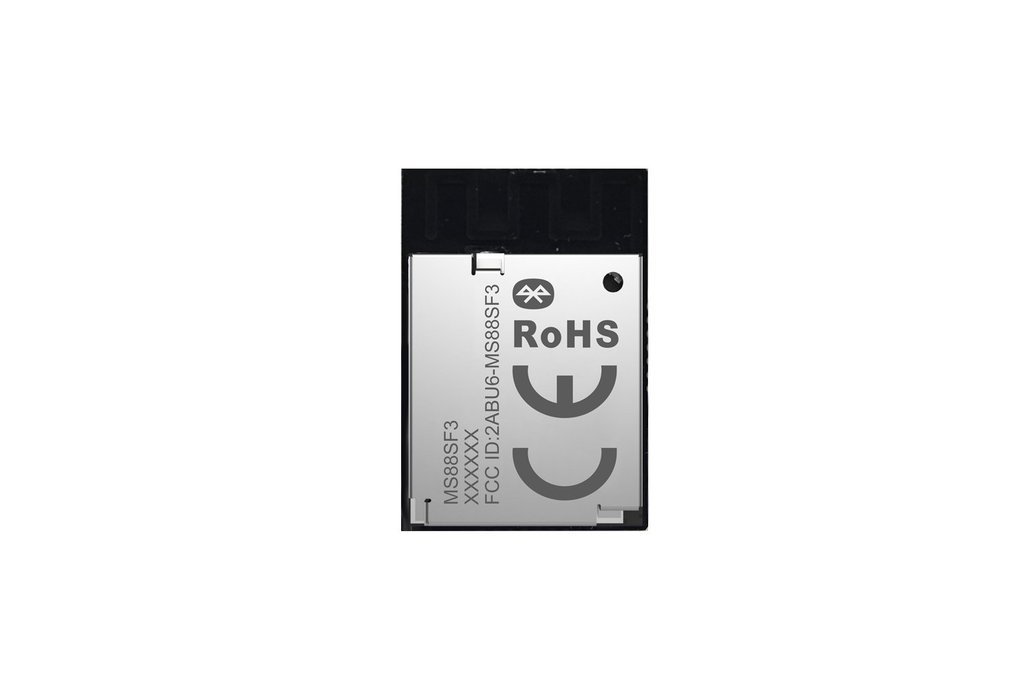

The MS88SF3 is a master slave module that can be switched into master/slave mode through instructions. Master and never can work simultaneously and can only be connected one-on-one. The device defaults to host mode. In main mode, devices can be scanned and connected through instructions. Scanning can set broadcast name filtering and MAC address filtering to obtain relevant devices. The connection can only be initiated by specifying a MAC address.

The device communicates with the MCU through the UART interface. In command mode, the UART can send commands to modify the scan interval, scan timeout, connection interval, broadcast interval, broadcast custom data, baud rate, etc. MCU sends switching commands to the slave through UART, which has broadcast and connection status and can be connected by the host, serving as a bridge between the host and MCU for transparent data transmission.

• Supports master-slave switching
• Full IO port
• Transmission rates as fast as 11kB/S
• Support serial command configuration
• Supports protocols such as ANT, BLE, BLE MESH, ZIGBEE, and THREAD
