FPGA and DRAM: - Its core consists of a powerful FPGA hardware waveform processing engine and DRAM memory, rather than an MCU-based software implementation. DRAM and FPGA is essential for high frame rates and smooth waveforms.

Ultra-high Waveform Refresh Rate: - Its real-time performance is better than that of ordinary MCU solutions.

Bandwidth and Sampling Rate: - Bandwidth of 150MHz and real-time sampling rate of 1GSa/s.

Storage Depth: - Its storage depth is as high as 16Mpts.

Accuracy and Noise: - The original high-precision oscillator (for EPSON) with low temperature drift and hardware real-time frequency measurement are used. High-precision frequency display with three decimal places reserved - DC/DC power supply ripple analysis: measured millivolt level of weak signals, support 20M bandwidth limit. Tool for power supply ripple measurement - It has a minimum vertical sensitivity of 10mV/div and less background noise - Withstand voltage of BNC input terminal ± 200V - When used with a X100 high-voltage probe, the oscilloscope can measure signals of ±2000V. When measuring high voltage, please pay attention to grounding. The high-voltage probe should be purchased separately.

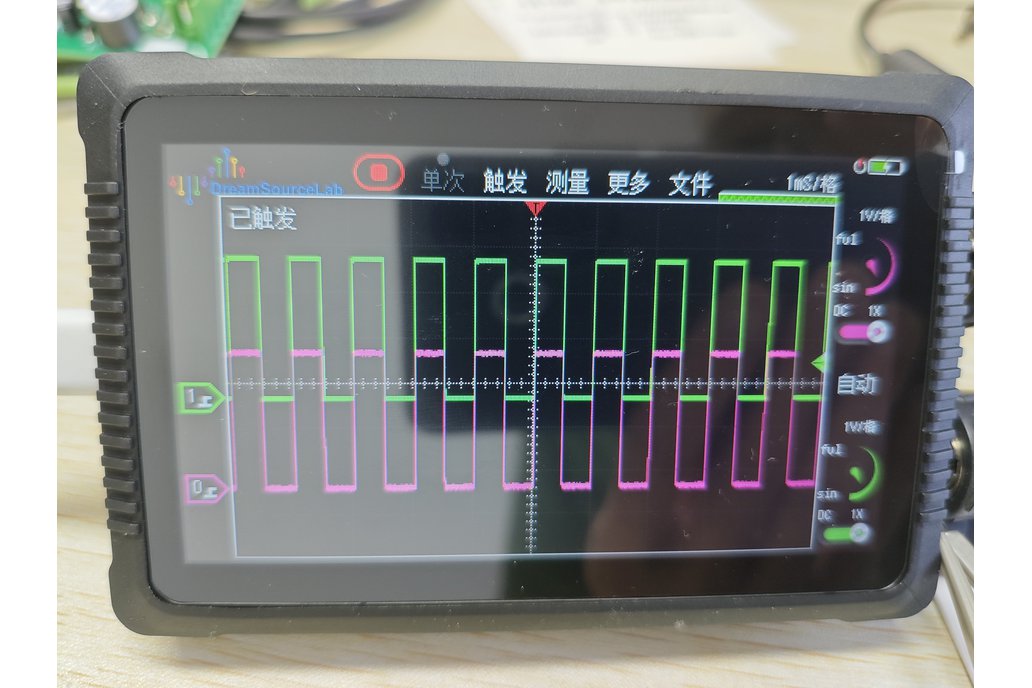

Touch Screen to Operate: - The oscilloscope is designed with a complete set of "single finger touch" operation. All functions are simplified into 1-3 steps of touch and swipe, so users can use the buttons and menu easily. - With 2 taps, you can add/remove a measurement option. 20 automatic measurement options available. - The horizontal resolution supports single-finger swipe adjustment of the entire waveform area. At the same time, the roller area can be quickly adjusted by dragging and dropping. - Extensive channel control options are available vertically, with wheel adjustment. Support quick adjustment by dragging and dropping. - It supports storage and on-boarding in 9 configurations. In order to adapt to different measurement scenarios, users can switch configurations with one click.

More Functions: - X-axis/Y-axis curved cursor - Lissajous figure in X-Y mode - Afterglow display - Signal generator - File feature

Industrial Design: - Pock-sized high-performance oscilloscope - Size: 117 x 77mm/4.6 x 3" (excluding the size of knobs) - Integrated soft rubber wrapping and hard plastic support shell. The four corners of the equipment prevent collision - Anti-wear protection strip for the front screen - Built-in bracket for different elevation angle support - Fanless: say goodbye to noise - Long endurance time: with built-in high-capacity lithium battery, it can work for 6 hours. Support sleep mode when there is no operation

Technical Parameters: Horizontal System: - Real-time sampling rate: 1GSa/s - Equivalent sampling rate: 5GSa/s - Maximum acquisition time at the highest sampling rate: 10ms - Time base range: 1ns/Div-10s/Div - Storage depth: 8Mpts (dual channel); 16Mpts (single channel)

Vertical System: - Bandwidth: 150MHz - Input coupling: DC or AC - Input impedance: 1MΩ//~16pF - Vertical sensitivity: 10mV/Div to 5V/Div - Vertical resolution: 8bits - Input withstand voltage range: peaks ≤ 250V - DC accuracy: ±4% - Vertical position: ±5 divisions - Vertical offset: ±5 divisions ±100mV to ±50V/Div - Common-mode rejection ratio: none - Channel isolation: none

Trigger System: - Trigger mode: Automatic Normal (ch0 and ch1) - Trigger position: 0%~100% sampling depth - Hold-off range: 0~1s - Trigger Type: Edge (rising or falling) - Trigger sensitivity: 0~0.625 grids - Trigger level range: +4.4 grids

Waveform Measurement: - Cursor: Y-axis and X-axis cursor - Manual measurement: width/frequency/period/voltage amplitude - Automatic measurement: frequency/period/+duty cycle/-duty cycle/+pulse number rising edge/falling edge/+pulse width/-pulse width/burst pulse width/amplitude/high level/low level /rms/average/peak-to-peak/maximum/minimum/+overshoot/-overshoot

Waveform Display: - Time-domain waveforms: Real-time waveform acquired in a single shot (high frame rate hardware processing engine) - X-Y mode: Lissajous figure

Signal Generation: - Waveform type: sine/square/triangle/sawtooth wave - Waveform frequency: 0-100KHz - Square wave duty cycle: 10%-90% - Waveform amplitude: 0-3V (min Vpp=0.5V)

Extended Interface: - Mini-HDMI: Extends acquisition based on other sensors - BNC: Extended Current/Differential Probes

Package Included: - 1 x Oscilloscope
