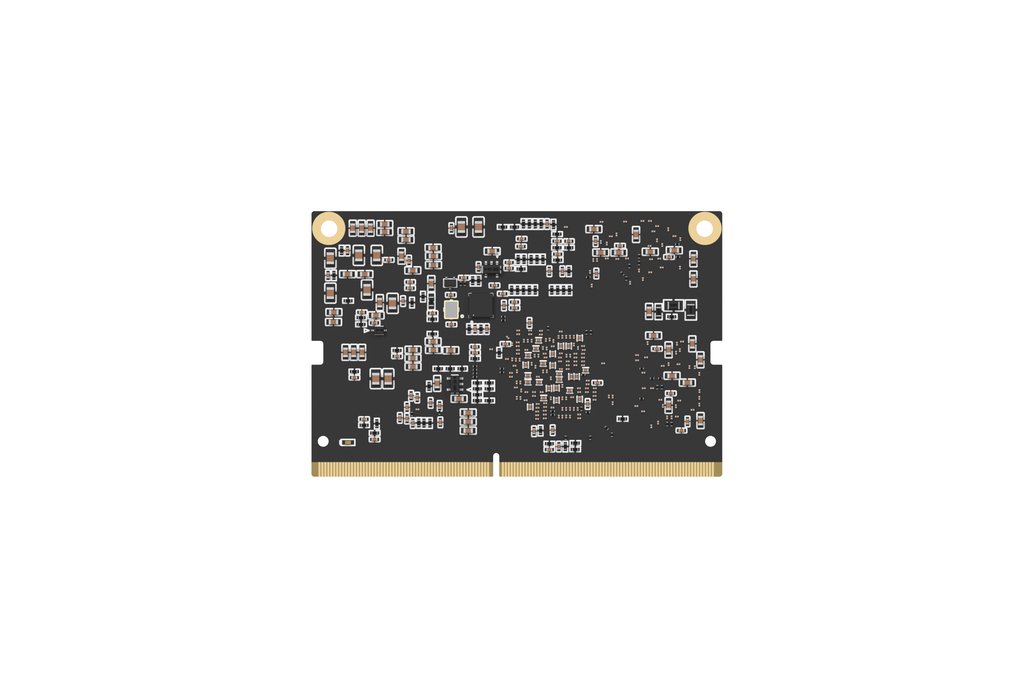

Mixtile System-on-Module, Core 3588E, is designed for supporting multiple applications based on ARM high-performance and low-power processors.

Technical Specification

• Quad-core Cortex-A76 + Quad-core Cortex-A55 SoC processor
• ARM Mali-G610 MP4 GPU
• 4/8/16 GB LPDDR4
• 32/64/128 GB eMMC 5.1
• Video encoder: H.264/H.265 video encoder up to 8K @ 30 FPS
• Video decoder: H.265/H.264/VP9 video decoder up to 8K @ 60 FPS
• 48M dual ISP with HDR
• PCIe Gen3 x4 Interface + PCIe Gen2 x1 Interface
• DP 1.2a + HDMI 2.1 (8K @ 60 FPS or 4K @ 120 FPS)
• Support deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN
• 260 pin edge connector
• Dimension: 69.6 x 45 mm

Remark: Mixtile Core 3588E is a pre-order product and promotion price will be end on August 31th. All orders will be shipped in the mid of October.
