CC2640 iBeacon Module
Sold By MMM999
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Thank you for visiting our online store! We've introduced a variety of electronic parts, hope you like it.

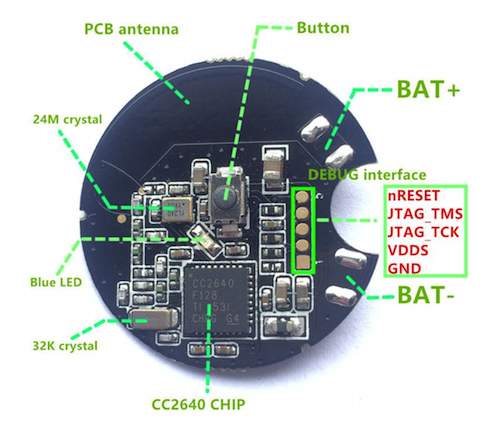

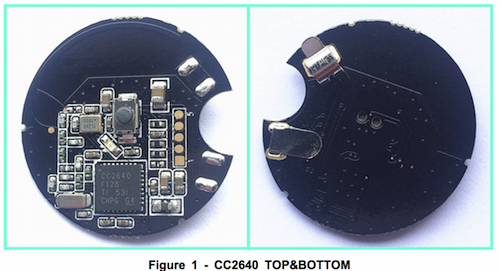

The CC2640 beacon module fully supports the single-mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application…

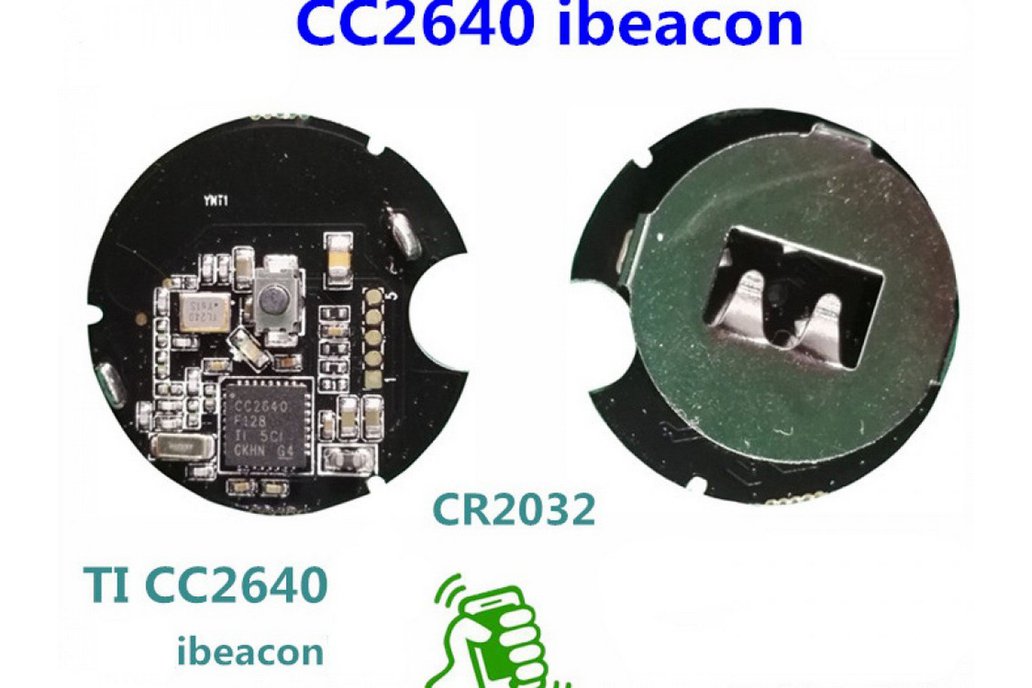

Read More…The CC2640 beacon module fully supports the single-mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in the Network Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory for custom applications. The beacon with battery shrapnel in its back, and easy to test with a button battery CR2032.
Features:
Built-in CC2640F128 Bluetooth Smart (BLE 4.1) System-On-Chip (SOC) 128 kB Flash / 20 KB SRAM RF Output Power: +5 dBm RF Receive Sensitivity: -96 dBm Operating Voltage: 1.8V to 3.8V Operating Temperature: -40 to +85C 8.4 mA Transmit Mode (+5 dBm) 7.4 mA Receive Mode 1μA Standby (SRAM/CPU retention and RTC running) with quick 100 μs startup 200nA Shutdown 61μA/MHz Active CPU Current Drivers, Bluetooth Low Energy Controller, and bootloader in ROM Flexible peripheral set Onboard 32 kHz and 24 MHz Crystals Worldwide Acceptance

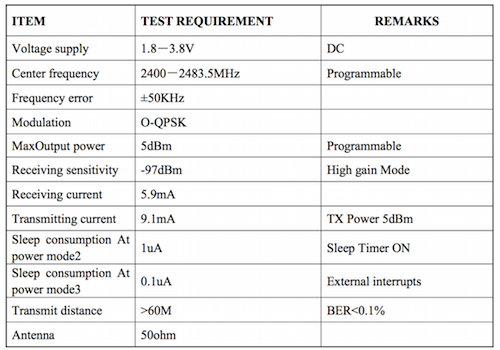

Electrical Characteristics :
Package List:
1 x CC2640 iBeacon Module (Not include the CR2032 battery)
