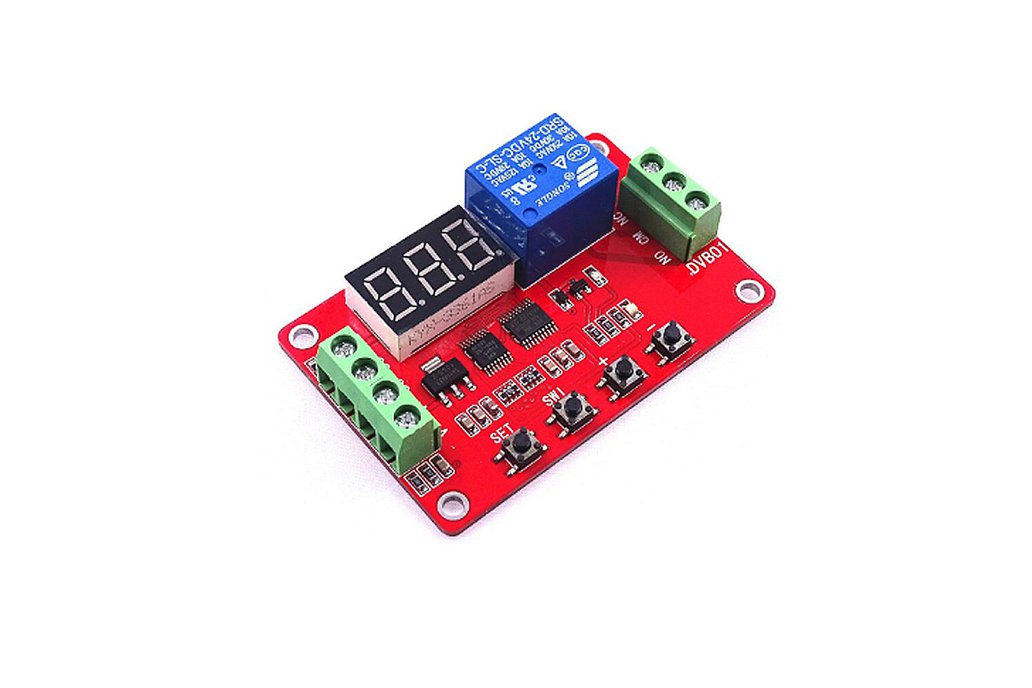

DVB01 DC 5V 12V 24V Digital Display Window Voltage Comparator Voltage Measurement Charge Discharge Overvoltage Undervoltage Over-limit Prote
Sold By MMM999
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Thank you for visiting our online store! We've introduced a variety of electronic parts, hope you like it.
Specifications: Color: Red Material: plastic Operating voltage: DC12V/24V(optional) (should not exceed the nominal voltage of +/- 10%) Operating current:< 90mA at 5V (less than 12mA when relay is not…
Read More…Specifications:
Color: Red
Material: plastic
Operating voltage: DC12V/24V(optional) (should not exceed the nominal voltage of +/- 10%)
Operating current:< 90mA at 5V (less than 12mA when relay is not active, less than 3mA for off display)
< 50mA at 12V(less than 12mA when the relay is not activated, turn off the display is less than 3mA)
< 35mA at 24V(less than 12mA when the relay is not activated, turn off the display is less than 3mA)
Operating temperature: Recommended -20~ 60℃(limit range -30~70℃)
Measuring range: 0-99.9V
Load capacity: relay normally open port Maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A
Relay normally closed port Maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A
Module size: 674420mm
Weight: Approx.30g
Module interface:
Input end
1, DC +: positive DC power supply
2, DC-: DC power supply anode
3, V +: measuring voltage positive
4, V-: measuring the negative voltage
Relay load output:
NO: relay normally open interface, the relay pull before the open, after the suction with COM shorted
COM: relay common interface
NC: normally closed relay interface, the relay before the short circuit with the COM, pull after the vacant
Package include:
1×Digital window voltage comparator
