Introduction:

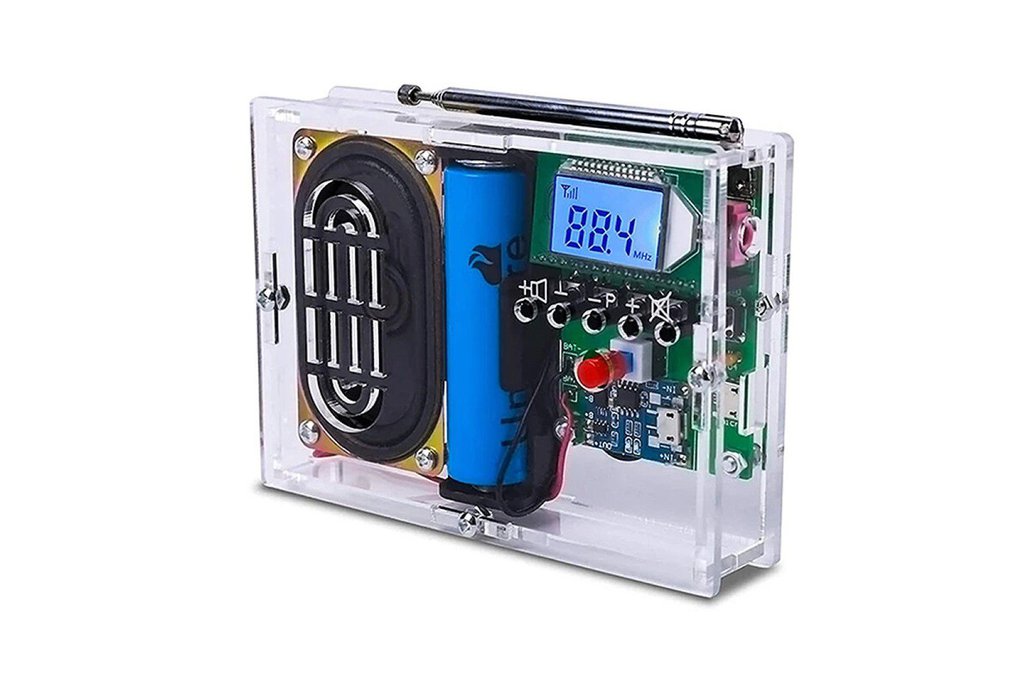

It is an 76.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit. It has a built-in high-definition display LCD display screen which can clearly display the receiving frequency and it can store 22 radio stations, which is enough to meet your needs.

Feature:

1. LCD Display FM Radio Receiver DIY Kit

2. Work Voltage: DC 3.0V~5.0V

3. Output impedance: 8ohm

4. Output power: 5W

5. Output channel: Mono for speaker and Dual channel for earphone

6. Frequency: 87.0MHz~108.0MHz (Disable CampussBroadcasting Band)

7. Frequency:76.0MHz~108.0MHz (Enable CampussBroadcasting Band)

8. Equivalent noise: >=30dB

9. Automatically search for radio stations

10. Built-in 30-level digital volume adjustment

11. Automatic memory function after power off

12. Built-in rechargeable module

13. Power saving mode with backlight off for 20 seconds

14. Support speaker and earphone audio output

Use Methods:

1. Keep press AUTO button to automatically search and store the radio stations that can be listened to.
2. Automatically name searchable stations like P01,P02,P02 and so on.
3. Press P+ and P- to switch saved stations.
4. Press V+ and V- to adjust volume from V00 to V30.
5. Switch CampusBroadcasting Band: Keep press V+ and V- before power ON and then turn ON work power switch. It means enable CampusBroadcasting Band if display C1 on LCD. It means disable CampusBroadcasting Band if display C0 on LCD.Available after restart.
6. Enable backlight mode: Keep press P+ and P- before power ON and then turn ON work power switch. It means keep backlight ON if display B1 on LCD. It means the backlight will turn OFF after 20second if display B0 on LCD(This is the power saving mode).Available after restart.
7. It can output audio from speaker and earphone jack. The speaker of the module does not work when the earphone is connected.

Note:

1. It cannot receive radio while it is charging.
2. It is a wireless module. So do not use it in an environment with siggnal interference.
3. Input charging voltage form micro USB on the bigger PCB.

Installation Tips:

1. User needs to prepare the welding tool at first.
2. Please be patient until the installation is complete.
3. The package is DIY kit. It need finish install by user.
4. The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5. Pay attention to the positive and negative of the components.
6. Strictly prohibit short circuit.
7. User must install the LED according to the specified rules. Otherwise some LED will not light.
8. Install complex components preferentially.
9. Make sure all components are in right direction and right place.
10. It is strongly recommended to read the installation manual before starting installation!!!
11. Please wear anti-static gloves or anti-static wristbands when installing electronic components.

Installation Steps (Please be patient install!!!):

Step 1: Install 1pc 39Kohm Metal Film Resistor at R1. Step 2: Install 2pcs 10Kohm Metal Film Resistor at R2,R3. Step 3: Install 1pc SOP-16 IC LM4863 at U1.There is a mark on one end of the IC and there is a mark on PCB where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC Socket. Step 4: Install 1pc micro USB socket at J2. Step 5: Prepare 6pcs pin header. Step 6: Install 1pc Charging Module at J7 and fix by 6pcs pin header. Step 7: Remove black fixed block from 6pcs pin header and fix Charging Module. Step 8: Install 1pc 0.1uF Monolithic Capacitor at C2. Step 9: Install 1pc 1uF 50V Electrolytic Capacitor at C1.Pay attention to distinguish between positive and negative.The Longer pin is positive pole. Step 10: Install 1pc 3.5mm Audio Socket at J5. Step 11: Cut a pin from 16Pin Female Socket. Step 12: Install Female Socket at FM.Pay attention to the direction of the cut pin. Step 13: Install 1pc Self-locking Button at S6. Step 14: Install 5pcs 6620mm Black Button at S1-S5. Step 15: Install 1pc Self-locking Button Cap on Self-locking Button. Step 16: Install 1pc Antenna at ANT.Note that the antenna should be installed on the front of the PCB. Step 17: Install 1pc 18650 Battery Box at J1,J3.Pay attention to the positive and negative.Red wire is positive pole. Step 18: Install 2pcs 15cm black Cable on speaker. Step 19: Connect speaker to PCB at SP. The speaker does not distinguish between positive and negative. Step 20: Install 1pc FM Audio Receiver on Female pins.Pay attention to the direction of the cut pin. Step 21: Tear off the protective film on the surface of the acrylic shell. Step 22: Install 4pcs M315mm Copper Pillar and 4pcs M310mm Screw on Acrylic bottom plate. Step 23: Fixed speaker on acrylic bottom plate by 4pcs M36mm Screw. Step 24: Install 3pcs M36mm Screw and 3pcs M3 Nut on Acrylic bottom plate.Note that the wire should not be placed between the PCB and the acrylic. Step 25: Fixed main PCB on acrylic bottom plate by 3pcs M3 Nut.Note that the wire should not be placed between the PCB and the acrylic. Step 26: Adjust the position of the battery box. Do not place the wires under the battery box. The wires can be moved to both ends of the battery box. Step 27: Fix other acrylic plate by 6pcs M3*6mm Screw and 6pcs M3 Nut. Step 28: Connect to power supply and enjoy the effect.

No. Component Name PCB Marker Parameter Quantity 1 LM4863 R7 SOP-14 1 2 3.5mm Audio Socket R1,R2.R4,R5,R8~R14 5Pin 1 3 Monolithic Capacitor R3 0.1UF 104 1 4 Electrolytic Capacitor Y1 1uF 50V 1 5 Metal Film Resistor C1,C2 10K ohm 2 6 Metal Film Resistor TEA5767 39K ohm 1 7 FM Audio Receiver LM386 4122mm 1 8 Black Button U1 6620mm 5 9 Micro USB Socket R6 SMD 1 10 Antenna C4,C5,C6 80mm-255mm 1 11 Female Pin C3,C9,C11 16Pin 1 12 Self-locking Button C7,C8 88mm 1 13 Self-locking Button Cap Q1-Q4 Red 1 14 18650 Battery Box 5V 1 15 Male Pin D13 7Pin 1 16 Charging Module 056SMC_4 2618mm 1 17 Cable S4 15cm 2 18 Speaker S4 8ohm 5W 1 19 Acrylic Shell S1,S2 6 20 Copper Pillar LM386 M315mm 4 21 Screw U1 M310mm 4 22 Screw X1 M36mm 14 23 Nut M3 12 24 PCB SP 1

Package Include:

1x LM4863

1x 3.5mm Audio Socket

1x Monolithic Capacitor

1x Electrolytic Capacitor

2x Metal Film Resistor(10KΩ)

1x Metal Fim Resistor(39KΩ)

1x FM Audio Receiver

5x Black Buttons

1x Micro USB Socket

1x Antenna

1x Female Pin

1x Self-locking Button

1x Self-locking Button Cap

1x 18650 Battery Box

1x Male Pin

1x Charging Module

2x Cables

1x Speaker

6x Acrylic Shells

4x Copper Pillars

4x Screws(M3*10mm)

14x Screws(M3*6mm)

12x Nuts

1x PCB
