Introduction:

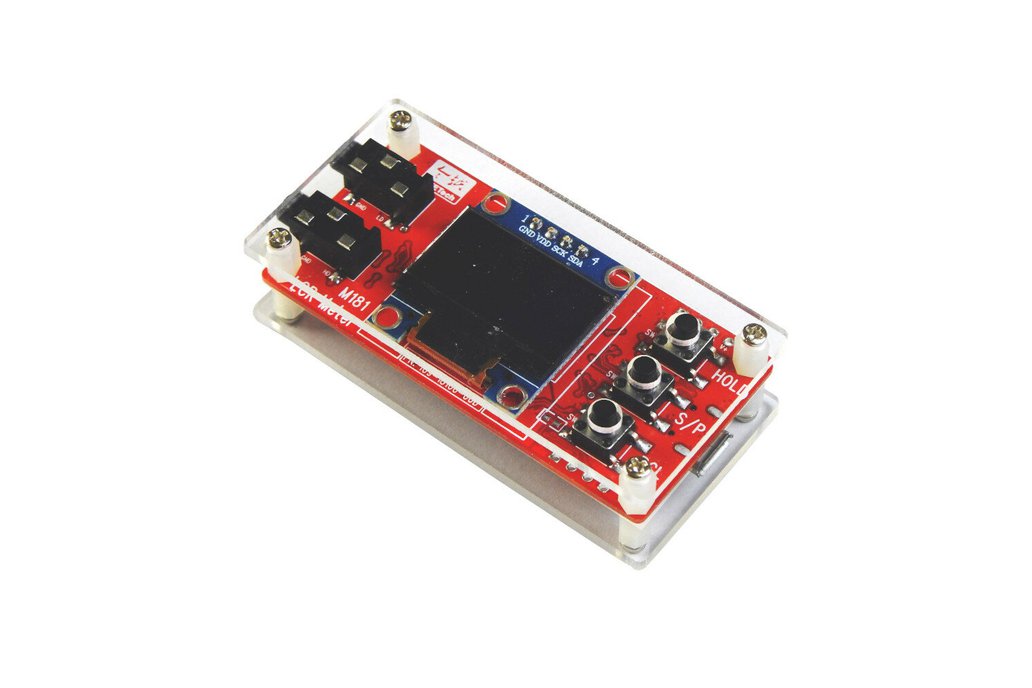

M181 LCR meter is a practical kit for measuring the R, C, or L of either through-hole or surface-mount components. It features about 1% accuracy, which is adequate in most engineering scenarios. Not only being very easy to build, it also includes a Self Test mode that helps users to verify the correctness of assembly. Compact in size and the capability of serial output make the meter a great choice for many embedded applications.

Highlights of M181 LCR Meter:

Resistance range: 0.1ohm — 10M ohm Capacitance range: 1pF — 10000uF Inductance range: 1uH — 20H Fully automatic ranging Accuracy: about 1% Measurement frequency: 1KHz/100Hz selectable Measurement voltage: 0.6Vpp Built-in virtual USB comport for data output and firmware upgrade Serial data output via USB comport or direct LVTTL Display HOLD function USB (5V) powered Easy to build, easy to use Self test mode for verifying the correctnes of assembly Acrylic panels included

Specifications:

Display: Primary: R, C, L Secondary: Q, D, ESR Equivalent Circuit Mode: Parallel or Serial

Measurement Range and Accuracy: R, |Z|: 0.1Ω - 10MΩ C: 1pF - 10000μF L: 1μH - 20H Q, D: 0 - 10000 Accuracy: About 1%

Measurement Conditions: Test Frequency: 100Hz, 1KHz Open Voltage: 0.6Vpp

Miscellaneous: Measurement Connections: 4 Kelvin wires on the test terminals Ranging: Fully automatic Compensations: Open, Short Serial Data Output: Yes Power Supply: USB Power Consumption: < 100mA @ 5V Dimensions: 66 x 32x 19mm (2.60" x 1.26" x 0.75") Weight: 23g (76g with probes)

Documents:

M181 User Manual M181 Assembly Guide Schematic Component Locations

Package includes:

1x M181 LCR Meter DIY kit
