Specifications:

Main control chip: Rockchip RK3588S (8nm LP) CPU: 8-core 64-bit processor 4 Cortex-A7604 Cortex-A55, The main frequency of the large core is 2.4GHz, and the main frequency of the small core is 1.8GHz GPU: ARM Mali-G610 Built-in 3D GPU OpenGL ES1.1/2.0/3.2. OpenCcL 2.2 Vulkan 1.2 NPU: Built-in AI accelerator NPU with up to 6 Tops computing power, supports INT4/INT8/INT16 mixed computing PMU: RK806-1 RAM: 4GB/8GB/16GB(LPDDR4/4x) Storage: QSPI Nor FLASH 8MB MicroSD (TF) Card PCle M.2 M-KEY NVMe SSD USB: USB3.01; USB2.02; Type-C (USB3.0) * 1 Video output: HDMI2.1, maximum support 8K@60Hz DP1.4 (DisplayPort), DP1.45USB3.0, shared port with Type-C 2 MIPI D-PHY TX 4Lane, the maximum configuration can be 4K@60Hz Camera: MIPI CSI 4Lane 2 MIPI D-PHY RX 4Lane Audio: CODEC:ES8388 3.5mm headphone jack audio input/output Input: Onboard MIC HDMI 2.1 eARC PCle M.2 M-KEY Socket: SSD solid state drive module supporting PCIe M.2 M-KEY NVMe WI-FI6+BT5.0 custom module supporting PCIe M.2 M-KEY Ethernet: 10/100/1000Mbps Ethernet (YT8531B) Expansion port: 26Pin double-row pin, supports the following functions: 3UART;6PWM;2I2C;1SPI;2CAN;17GPIO; These functions are multiplexed and cannot be supported at the same time Keys: 1 MaskROM key, 1 switch key, 1* RECOVERY key Power supply: Support Type-C power supply (5V4A) LED: Power Indicator: Red; Status Indicator: Green Debug: 3Pin debug serial port (UART) Supported OS: Android12, Debian11 Product size: 62mmx100mm Weight: 46g

Features:

1. Rockchip RK3588S octa-core 64-bit processor
2. Main frequency up to 2.4GHz
3. 4GB/8GB/16GB (LPDDR4/4x) memory
4. Support 8K video codec

Package Include:

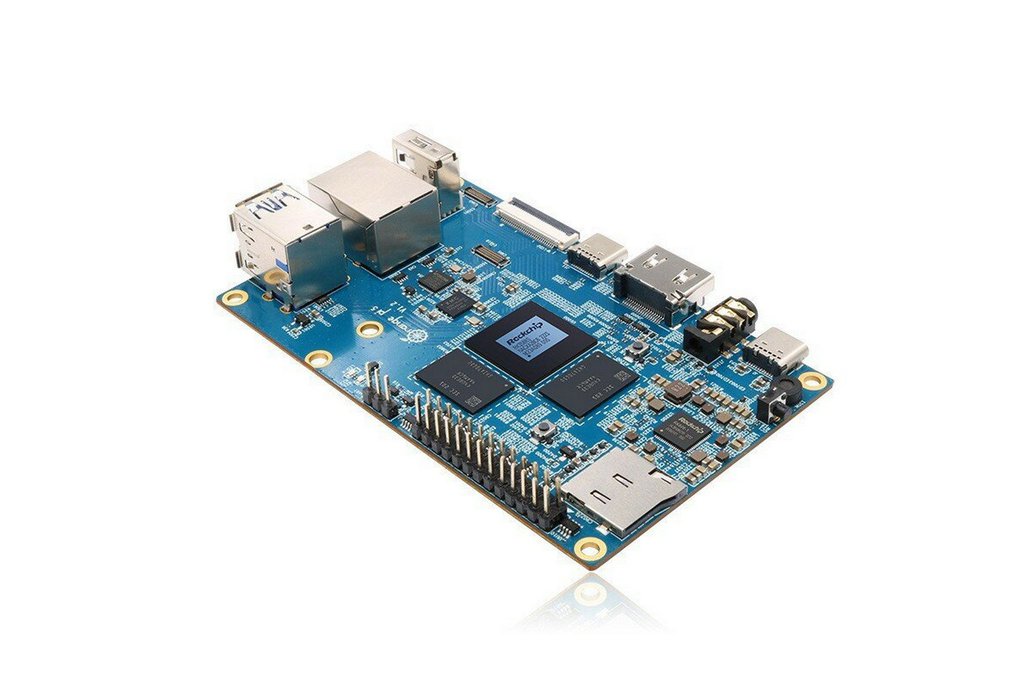

1x Orange Pi 5 Single Board
