Specifications:

Processor: StarFive JH7110

CPU: RISC-V U74 quad-core 64-bit V64GC ISA SoC equipped with 2MB L2 cache and S7 core, operating frequency up to 1.5GHz

GPU: IMG BXE-4-32MC1, operating frequency up to 600MHz

Memory: 8G Byte LPDDR4

Storage: TF card (need to be purchased separately)

Camera: MIPI CSI 2lane 1080p@30fps

Display: 1 x 2-lane MIPI DSI 1080p@30fps

1 × 4-lane MIPIDSI 2K@30fps

(Only one of the two DSI ports can be used at a time)

1 x HDMI 2.0 4K@30fps, 2K@60fps

USB Host: 4 x USB 3.0 Type-A ports

USB Device: 1 x USB Device (multiplexed with USB Type-C interface)

Wired network: 1 × 1000M fixed network port (main network port)

1 x 100/10M fixed network port

Reset button: Press it to restart under U-boot; after the system starts, press and hold for three seconds to restart

Debugging interface: Multiplexing the 8th and 10th pins on the 40PIN pins, providing UART TX and UART RX functions

USB Type-C power supply interface:

USB Type-C fast charging port input 5V DC (low to 3A) (up to 30W)

Support 5~20V fixed voltage input

Support USB Type-C PD2.0,9V/2A, 12V/2A, 15V/2A, 20V/2A Support QC3.0/2.0 Adapter,9V/2A, 12V/1.5A

Other power supply interface:

40PIN GPIO 5V interface input

PoE network port power input, need external PoE module

Other interfaces:

40PIN GPIO

M.2 M-Key SSD socket

eMMC interface

2PIN fan interface

3.5mm Audio Jack, 4-pole stereo audio jack

Dimensions: 100×74×21mm

Compliance: RoHS, FCC, CE

Suggested working environment temperature: 0~50°C (chip operating temperature over 85°C will automatically reduce CPU frequency and voltage to achieve cooling effect)

Features:

1. On-board quad-core 64-bit SoC with RV64GC ISA, operating frequency up to 1.5GHz.

2. Support OpennCL 3.0, OpenGL ES 3.2 and Vulkan 1.2.

3. Equipped with M.2/CSI/DSI/HDMI/eMMC/USB 3.0/40PIN GPIO/RJ45 Gigabit Ethernet port/TF card slot and other interfaces, more convenient to use.

4. Support 4K@60fps and H264/H265 multi-channel video decoding, support 1080p@30fps and H265 multi-channel video encoding.

5. The board has a 40PIN GPIO interface, compatible with Raspberry Pi series motherboards.

6. The open source SBC also provides extensive software compatibility, including support for Debian.

Package Include:

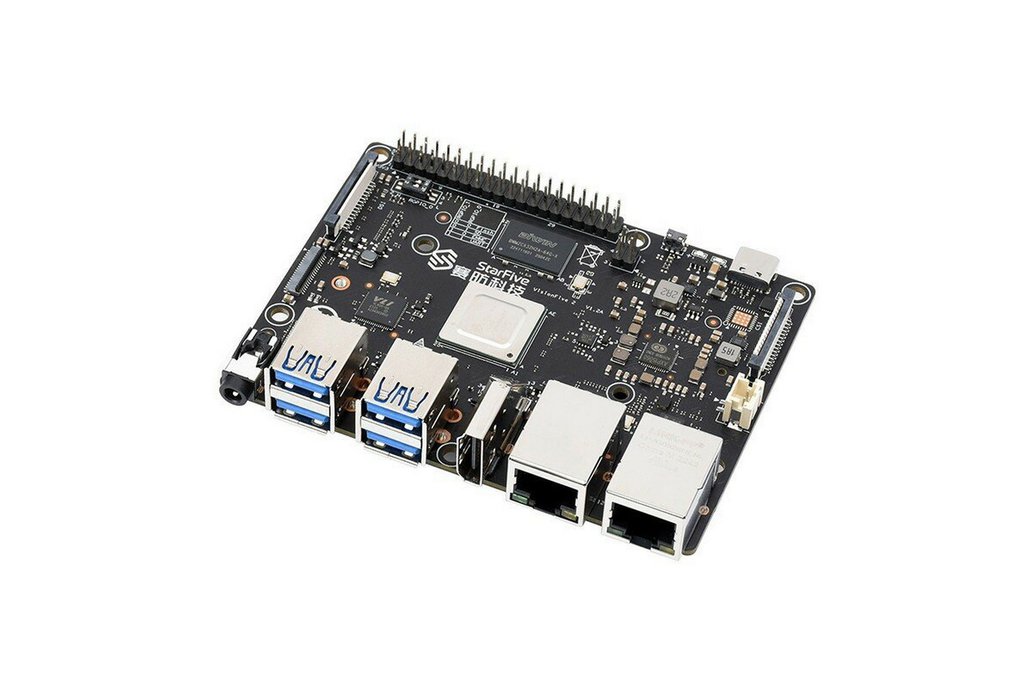

1× 8GB VisionFive2 Development Board

1× WiFi Module(Optional)
